Titanium Gr 5 Needle Valve

Home >Titanium Gr 5 Needle Valve

Paul Tube Fittings is a top manufacturer and seller of high-quality Titanium Gr 5 Needle Valves in Houston, USA. Known for accuracy engineering and long-lasting performance, our valves are made to conform to high industrial standards. Titanium Grade 5 (Ti-6Al-4V) has high strength, corrosion resistance, and low weight, which makes it suitable for precision fluid control applications. We guarantee on-time delivery, competitive pricing, and complete traceability of all our products at Paul Tube Fittings. We have a large installation base of Titanium Gr 5 Needle Valves in the aerospace, marine, chemical, and petrochemical industries in the United States and worldwide.

Titanium Gr 5 Gauge Bleed Needle Valves Supplier in Houston, UNS R56400 Titanium Gr 5 Industrial Needle Valve Price List in Los Angeles, Ti Alloy R56400 Needle Manufacturer in Texas, DIN 3.7165 Needle Valves in California, Grade 5 Titanium Gauge Valves Exporter in Los Angeles, Titanium 6Al-4V Needle Valve Manufacturer in Houston, Titanium Alloy Grade 5 Needle Valve In Houston, USA.

Titanium Gr 5 Needle Valve, which is fabricated using Ti-6Al-4V alloy, contains about 90% titanium, 6% aluminum, and 4% vanadium. This composition gives the best combination of strength and corrosion resistance. Mechanically, it has 895 MPa (130 ksi) tensile strength, 828 MPa (120 ksi) yield strength, and an elongation of approximately 10%. With a hardness level of approximately 36 HRC, it is remarkable at high-pressure applications. It has a density of 4.43 g/cm³, which is remarkably lower than steel but not in terms of structural resistance at the highest levels.

Titanium Gr 5 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	TITANIUM GRADE 5

Titanium Gr 5 Needle Valve Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade5	90 min	–	0.25 max	–	–	0.2 max	6 min	4 min

Titanium Gr 5 Needle Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 5	4.43 g/cm3	1632 °C (2970 °F)	Psi – 138000 , MPa – 950	Psi – 128000 , MPa – 880	14 %

Top Titanium Gr 5 Needle Valve Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Titanium Gr 5 Needle Valve in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

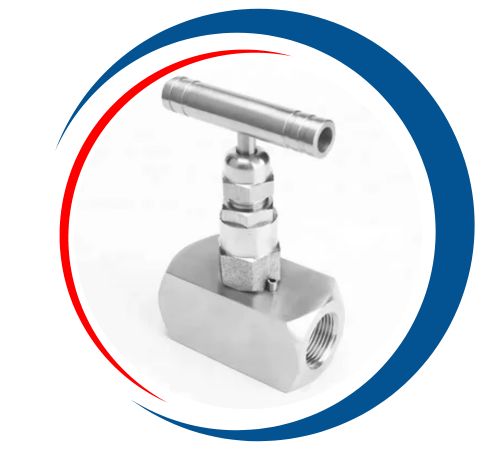

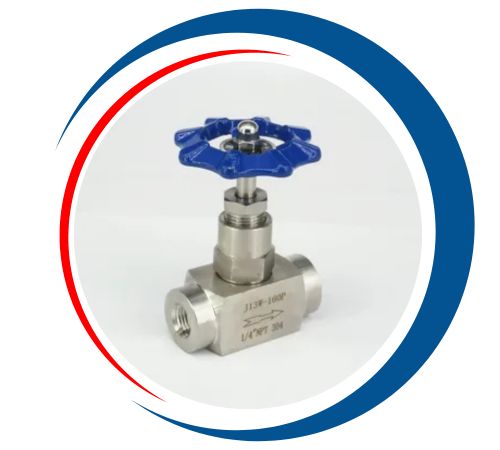

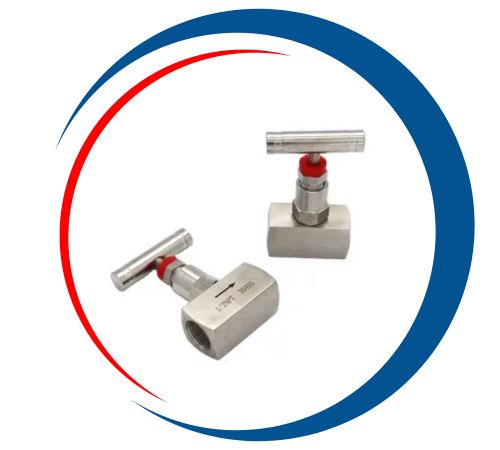

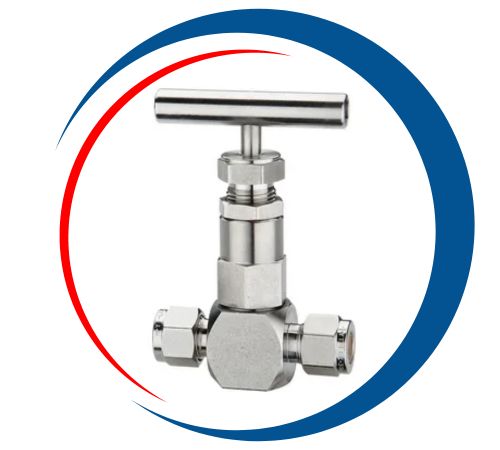

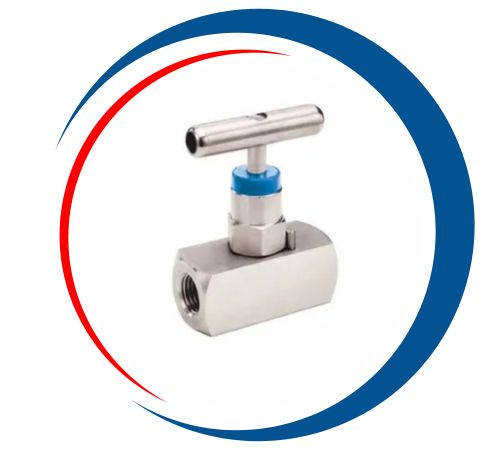

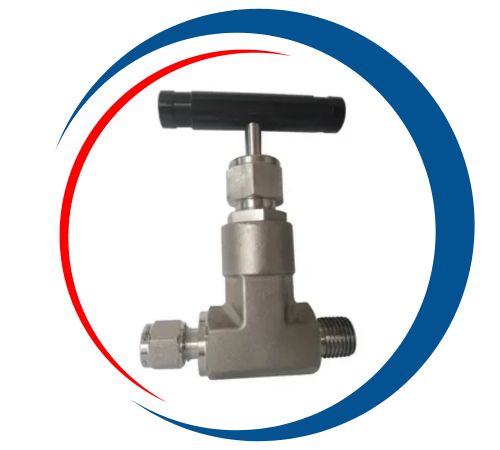

Types of Titanium Gr 5 Needle Valve

Titanium Gr 5 Needle Valve Equivalent

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr. 5	3.7165	N56400

Titanium Alloy Gr 5 Hydraulic Needle Valve Price in Houston, Ti Grade 5 Parker Needle Valve Supplier in Los Angeles, Ti6Al4V Screwed End Needle Valve Manufacturer in Texas, Ti Alloy Gr. 5 Multiport Gauge Valves Price in California, Titanium Gr 5 Gauge Vent Valves Supplier And Manufacturer in Houston, Titanium Gr.5 Gauge Valve In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Titanium Gr 5 Needle Valve Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Titanium Gr 5 Needle Valve in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Titanium Gr 5 Needle Valve Uses

Titanium Gr 5 Needle Valves find applications in applications where high strength-to-weight ratio and resistance to corrosion are of paramount importance. In the aerospace field, they control the flow of fluids in hydraulic systems and fuel lines. In the chemical and petrochemical sectors, they resist corrosive processes that include acids, alkalis, and heat. They find applications in offshore and marine applications because of their resistance to saltwater. Also, they are used in power generation and medical equipment, providing strong sealing and leak-free control. Their resistance to fatigue, non-magnetic characteristics, and durability make them well-suited for high-performance and safety-critical applications.
