Stainless Steel 316 Hydraulic Fittings

Home > Stainless Steel > Stainless Steel 316 Hydraulic Fittings

Paul Tube Fittings is one of the top manufacturers and suppliers of high-quality Stainless Steel 316 Hydraulic Fittings in Houston, USA. Known for precision engineering, long-lasting materials, and high-pressure performance, Paul Tube Fittings supplies fittings on par with global standards and suited for a range of industrial applications. With a deep focus on quality, customer satisfaction, and timely delivery, the company offers innovative hydraulic fitting solutions for use in oil and gas, petrochemicals, marine, and heavy machinery. Our products undergo rigorous testing to guarantee reliability and longevity in even the most hostile environments.

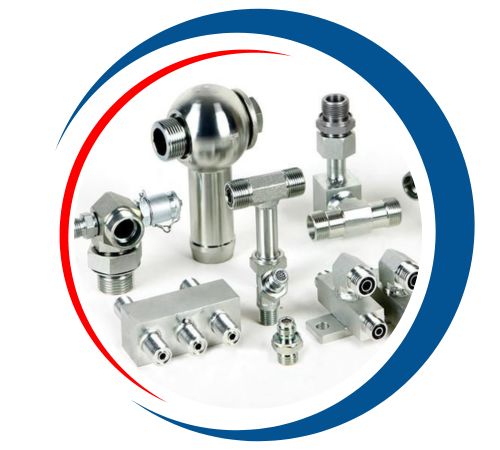

DIN 1.4401 Hydraulic Stainless Steel Bulkhead Union Fittings Price in Texas, Stainless Steel S31600 Hydraulic Banjo Elbow Supplier in Los Angeles, Stainless Steel 316 Hydraulic Female Stud Coupling Manufacturer in Houston, DIN 1.4401 Stainless Steel Hydraulic Straight Coupling in California, Stainless Steel UNS S31600 Hydraulic Tube Fittings Supplier in Los Angeles, 316 Stainless Steel Hydraulic Straight Coupling in Houston, USA, Stainless Steel SUS 316 Hydraulic Male Stud Coupling Price List in Houston, X5CrNiMo17-12-2 Stainless Steel Hydraulic Male Stud Coupling Price in California

Stainless Steel 316 Hydraulic Fittings consist mainly of iron with 16–18% chromium, 10–14% nickel, and 2–3% molybdenum to improve corrosion resistance, particularly in chloride-containing conditions. Austenitic stainless steel also includes manganese, silicon, and trace amounts of carbon. The material possesses superior mechanical properties with a tensile strength of about 515 MPa, yield strength of 205 MPa, and elongation of 40% in 50 mm. These attributes render it extremely durable, ductile, and resistant to high pressure, which makes it perfectly suitable for hydraulic systems and critical applications.

Stainless Steel 316 Hydraulic Fittings Specifications

DESIGN STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	SS 316 ,SS 316L
MATERIAL	SS 316 ,SS 316L
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
CONNECTIONS	WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STAINLESS STEEL 316 – (-60C TO 400C)
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182

Stainless Steel 316 Hydraulic Fittings Chemical Composition

Grade		Mn	C	S	Mo	N	Si	P	Cr	Ni
316	Minimum	–	–	–	2.00	–	–	0	16.0	10.0
316	Maximum	2.0	0.08	0.03	3.00	0.10	0.75	0.045	18.0	14.0
316H	Minimum	0.04	0.04	–	2.00	–	0	–	16.0	10.0
316H	Maximum	0.10	0.10	0.03	3.00	–	0.75	0.045	18.0	14.0

Stainless Steel 316 Hydraulic Fittings Mechanical Properties

Grade	Elong (% in 50mm) min	Yield Str 0.2% Proof (MPa) min	Tensile Str (MPa) min	Hardness
Grade	Elong (% in 50mm) min	Yield Str 0.2% Proof (MPa) min	Tensile Str (MPa) min	Rockwell B (HR B) max	Brinell (HB) max
316	40	205	515	95	217
316H	40	205	515	95	217

Stainless Steel 316 Hydraulic Fittings Equivalent

Grade	British		Euronorm		UNS No	SS	JIS
Grade	European Standards	British Standards	DIN No	Name	UNS No	SS	JIS
316	58H, 58J	316S31	1.4401	X5CrNiMo17-12-2	S31600	2347	SUS 316
316H	–	316S51	–	–	S31609	–	–

Top Stainless Steel 316 Hydraulic Fittings Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel 316 Hydraulic Fittings in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Stainless Steel Hydraulic Fittings

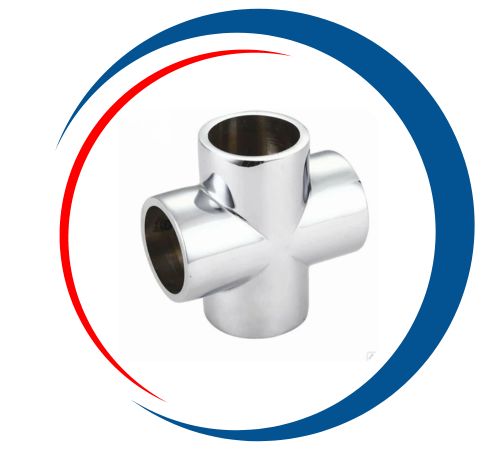

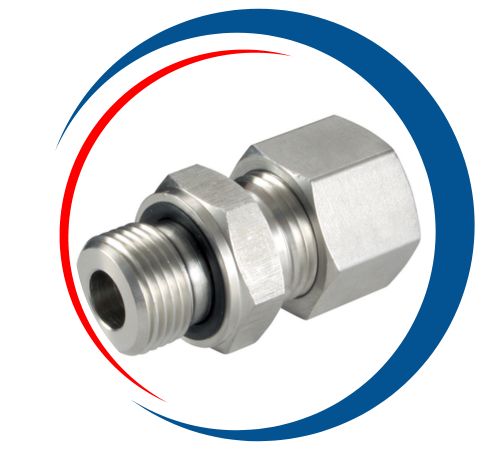

SS UNS S31600 Male Stud Coupling in Houston, Stainless Steel 316 Equal Cross Hydraulic Fittings Supplier And Manufacturer in California, Hydraulic Stainless Steel DIN 1.4401 Swivel Fittings Manufacturer in Los Angeles, SS SUS 316 Hydraulic Equal Elbow Fittings Manufacturer in Texas, X5CrNiMo17-12-2 Stainless Steel Swivel Fittings Supplier in Texas, 316 SS Equal Cross Hydraulic Fittings Supplier in Houston

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Stainless Steel 316 Hydraulic Fittings in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Stainless Steel 316 Hydraulic Fittings in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel 316 Hydraulic Fittings Uses

Stainless Steel 316 Hydraulic Fittings find applications in industries demanding high corrosion resistance and mechanical strength. They are used extensively in hydraulic and pneumatic systems of the oil and gas industry, chemical processing, marine, aerospace, and food and beverage industries. They are best suited for carrying corrosive liquids, high-pressure liquids, and gases. Due to their durability and non-reactive nature, they also find application in sanitary and sterile applications. They also find application in construction and heavy machinery for the purpose of leak-free vibration-resistant connections that can withstand rough operating conditions and aggressive media for long periods of service.
