Alloy 20 Manifold Valve

Home > Alloy 20 Manifold Valve

Based in Houston, USA, Paul Tube Fittings is a trusted name in manufacturing and supplying high-quality Alloy 20 Manifold Valves, specifically designed for use in harsh, corrosive environments. These valves are built to withstand sulfuric acid, chlorides, and other aggressive substances, making them perfect for critical roles in chemical processing, pharmaceuticals, and petrochemical industries. With a focus on precision flow control and isolation in instrumentation systems, Alloy 20 manifold valves from Paul Tube Fittings guarantee leak-tight performance, a long lifespan, and safety under pressure. The company is dedicated to providing reliable, high-performance solutions that adhere to international quality and performance standards.

Alloy 20 Manifold Valve Supplier in Houston, Alloy 20 Manifold Valve Supplier Price List in Los Angeles, Alloy 20 Hydraulic Manifold Valve Manufacturer in Texas, Alloy 20 2 Way Manifold Valve In California, 3 Way Manifold Valve, Alloy 20 Manifold Valve Price Exporter in Los Angeles, Alloy 20 Instrument Manifold Valve Manufacturer in Houston, Alloy 20 5 Way Manifold Valves in Houston, USA.

Alloy 20 Manifold Valves are crafted from a corrosion-resistant nickel-iron-chromium alloy, containing about 32–38% nickel, 19–21% chromium, 3–4% copper, and 2–3% molybdenum. This unique blend offers remarkable resistance to sulfuric acid, pitting, and stress corrosion cracking caused by chlorides. These valves boast impressive mechanical properties, with a tensile strength of around 551 MPa (80,000 psi) and a yield strength of 241 MPa (35,000 psi). Known for their excellent weldability, toughness, and durability in highly acidic and oxidizing conditions, Alloy 20 is the go-to material for manifold valves in aggressive chemical and process applications.

Alloy 20 Manifold Valve Specifications

BRAND NAME	Paul Tube Fittings
VALVE SIZE	1/8″ TO 1″
THREAD	NPT, BSPP, BSPT
CONNECTION	THREADED, FLANGE END
TYPE	R TYPE, T TYPE, H TYPE
FUNCTION	2 WAY, 3 WAY, 5 WAY
BODY SHAPE	SQUARE, RECTANGLE
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, ROSE MOUNT, HAMLET, OLIVER VALVES, HOKE
MATERIAL	ALLOY 20

Alloy 20 Manifold Valve Chemical Composition

Grade	%	Cr	Ni	Cu	S	Mo	C	Nb	Si	Mn	P
Alloy 20	Max.	21	38	4	0.005	3	0.02	0.3	0.7	2	0.02
	Min.	19	32	3		2		0.1		1

Alloy 20 Manifold Valve Mechnical Properties

Element	Melting Point	Density	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
Alloy 20	1443 °C (2430 °F)	8.1 g/cm3	Psi – 35000 , MPa – 241	Psi – 80000 , MPa – 551	30 %

Top Alloy 20 Manifold Valve Manufacturing Company in Houston

At Paul Tube Fittings, we are the leading supplier, manufacturer, and exporter of Alloy 20 Manifold Valves in Houston, USA. Our advanced manufacturing facilities, strategically based in the USA, enable us to deliver high-quality solutions tailored to your precise needs. With a vast inventory of over 16,000 tons of premium stainless steel and alloy materials, we are fully equipped to meet your demands promptly. Our dedication to quality and efficiency ensures that we consistently maintain sufficient stock to support your requirements effectively.

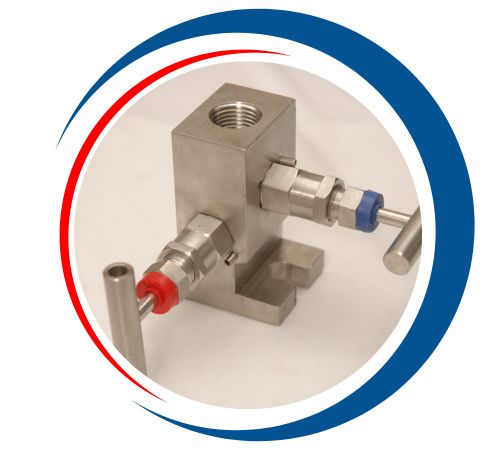

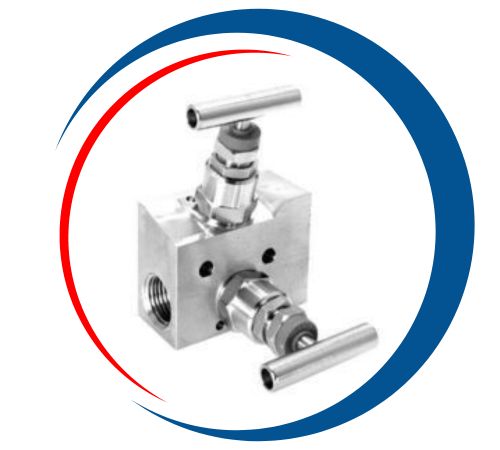

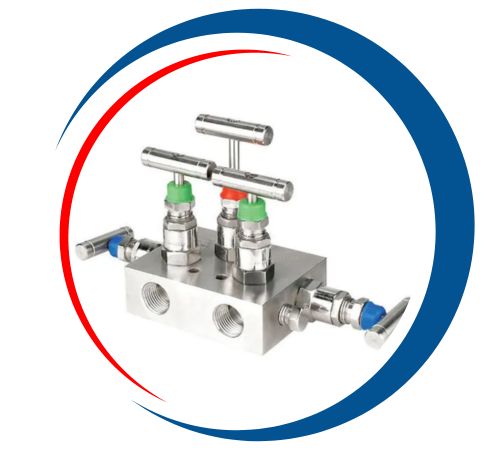

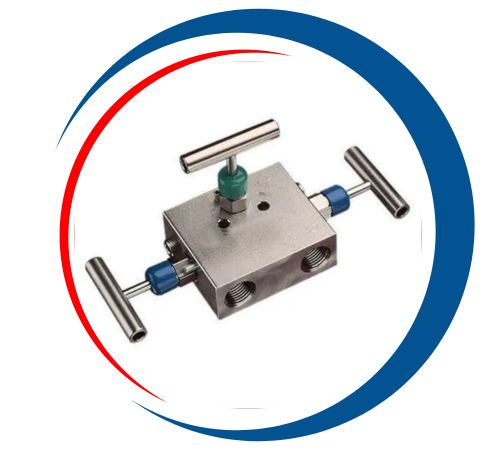

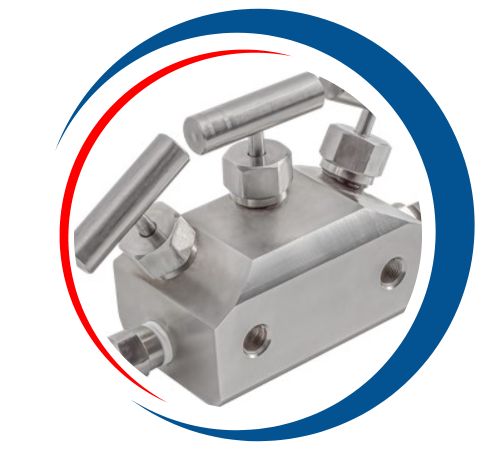

Types of Alloy 20 Manifold Valve

Alloy 20 Manifold Valve Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	EN	AFNOR	BS	JIS	GOST
Alloy 20	2.4660	N08020	NiCr20CuMo	Z2NCUD31-20AZ	–	–	–

Alloy 20 High Pressure Valve, Alloy 20 Manifold Valve in Texas, Alloy 20 Instrumentation Manifold Valve Price in Houston, Alloy 20 Instrument Solenoid Valve Supplier in Los Angeles, Alloy 20 Manifold Valve Manufacturer in Texas, Alloy 20 5 Way Manifold Valve Price in California, Alloy 20 2 Way Manifold Valve Supplier and Manufacturer in Houston, Alloy 20 3 Way Manifold Valve in Houston, USA.

Largest Manufacturer and Supplier of Alloy 20 Manifold Valve in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Alloy 20 Manifold Valves in Houston, USA. Our products are extensively used across diverse industries, and we are committed to providing outstanding service with a focus on high customer satisfaction. Our unique finishing techniques distinguish us in the metal industry, ensuring superior quality and performance. We are dedicated to consistently delivering top-tier products while effectively meeting the specific needs of our valued customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Alloy 20 Manifold Valve Uses

Alloy 20 Manifold Valves are essential in systems that require resistance to highly corrosive media. They find extensive use in chemical processing plants, pharmaceutical manufacturing, petrochemical facilities, and even marine environments—especially where sulfuric, nitric, or phosphoric acids are involved. These valves are specifically designed for instrumentation systems to control, isolate, or equalize pressure while ensuring maximum safety and efficiency.
