Alloy 20 Tube Fittings

Home > Alloy 20 Tube Fittings

At Paul Tube Fittings, based in Houston, USA, we take pride in being a leading manufacturer and supplier of top-notch Alloy 20 Tube Fittings. These fittings are specifically crafted to excel in highly corrosive environments, making them perfect for applications that involve sulfuric acid and other harsh chemicals. Renowned for their outstanding resistance to pitting, stress corrosion cracking, and crevice corrosion, Alloy 20 fittings find their place in the chemical processing, pharmaceutical, and food industries. Our precision-engineered tube fittings guarantee leak-proof, durable connections in critical systems, reflecting our commitment to quality, reliability, and tailored solutions that adhere to the highest industry standards.

Alloy 20 Buttweld Fittings Manufacturer in Houston, Alloy 20 Buttweld Elbow Exporter in Los Angeles, Alloy 20 Seamless Butt Weld Fittings Exporter Supplier in Texas, Alloy 20 Equal Cross Supplier in California, Alloy 20 Long Radius Bend In Texas, Alloy 20 Tube Fittings In California, Alloy 20 Reducers Price List in Houston, Alloy Tube Fittings Manufacturer in Houston, Alloy 20 Welded Tube Fittings Exporter in Los Angeles, USA.

Alloy 20 Tube Fittings are crafted from a unique nickel-iron-chromium alloy, enhanced with copper and molybdenum. Typically, the composition features 32–38% nickel, 19–21% chromium, 2–3% molybdenum, and 3–4% copper. This blend provides remarkable corrosion resistance, especially against sulfuric acid. With a tensile strength of around 551 MPa (80,000 psi) and a yield strength of 241 MPa (35,000 psi), these fittings also boast good ductility and impact resistance. Their ability to resist pitting and chloride stress corrosion makes Alloy 20 the go-to choice for aggressive environments where other stainless steels might falter.

Alloy 20 Tube Fittings Specifications

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2
Types	Seamless / ERW / Welded / Fabricated
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
Specialized manufacturer of	90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc

Alloy 20 Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Ni	Cr	Fe	Mo	P
Alloy 20	0.07 max	2.00 max	1.00 max	0.035 max	3 – 4	32 – 38	19 – 21	29.85 min	2.00 – 3.00	0.045 max

Alloy 20 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.1 g/cm3	1443 °C (2430 °F)	Psi -80,000, MPa -551	Psi – 35,000, MPa – 241	30 %

Top Alloy 20 Tube Fittings Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Alloy 20 Tube Fittings in Houston, USA. Our state-of-the-art manufacturing facilities, strategically located in the USA, empower us to provide high-quality solutions tailored to your specific needs. With a comprehensive inventory exceeding 16,000 tons of premium materials, we are fully equipped to meet your requirements promptly. Our unwavering commitment to excellence and efficiency ensures that we consistently maintain stock availability to support your demands effectively.

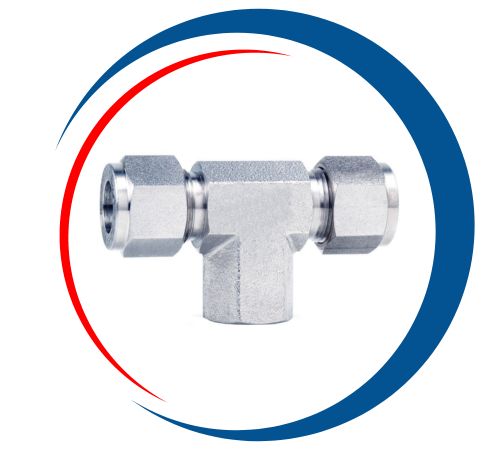

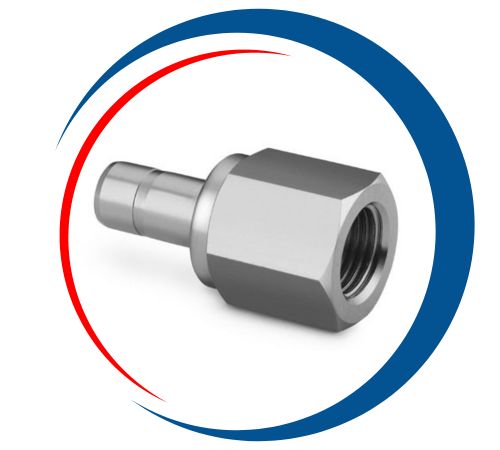

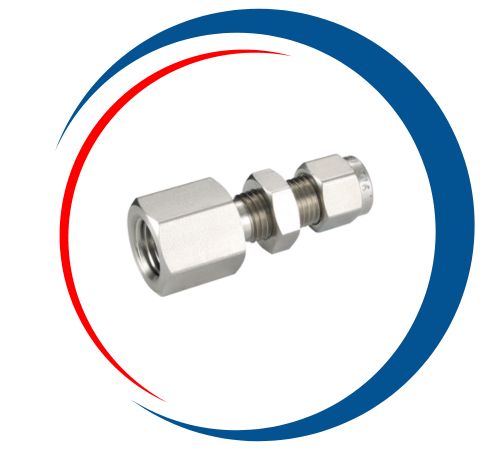

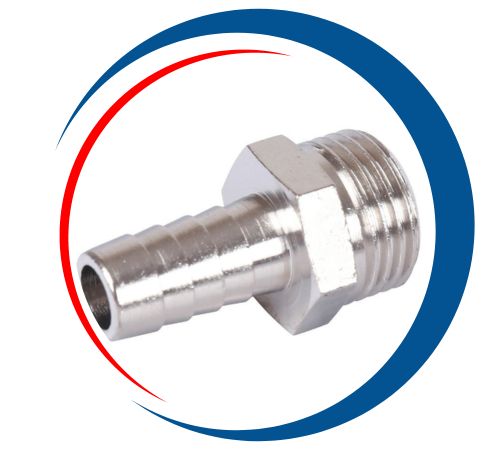

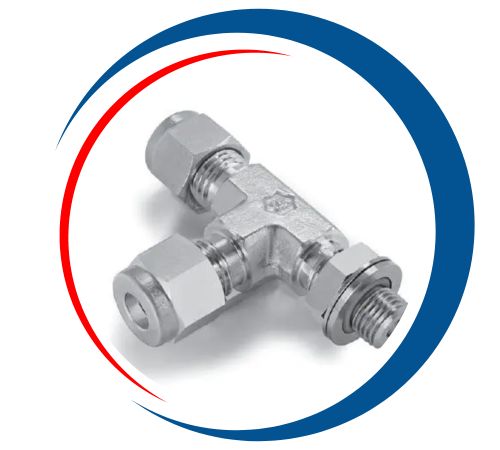

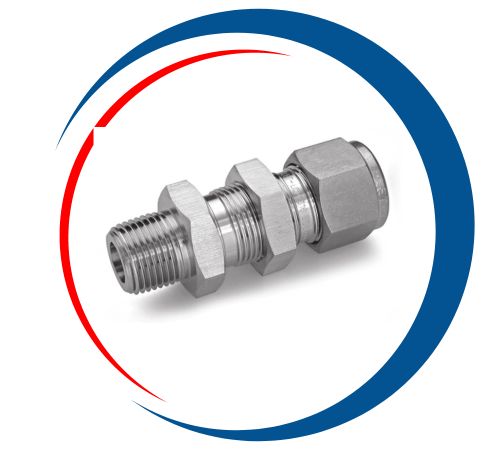

Types of Alloy 20 Tube Fittings

Alloy 20 Tube Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	AFNOR	EN
Alloy 20	2.4660	N08020	Z2NCUD31-20AZ	NiCr20CuMo

Alloy 20 Reducer Exporter in USA, Alloy 20 End Pipe Cap Manufacturer, Alloy 20 Instrumentation Tube Fittings Price in Houston, Alloy 20 Swage Nipple Supplier in Los Angeles, Alloy 20 Eccentric Reducer Manufacturer in Texas, Alloy 20 Single Ferrule Tube Fittings Price in California, Alloy 20 Tee Supplier and Manufacturer in Houston, Alloy 20 Male Elbow In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Alloy 20 Tube Fittings in Houston, USA

At Paul Tube Fittings, we take pride in being the largest supplier, manufacturer, and exporter of Alloy 20 Tube Fittings in Houston, USA. Our innovative solutions are designed to address all your piping requirements. With advanced production facilities strategically situated in the USA, we maintain an extensive inventory of over 16,000 tons of high-quality materials, guaranteeing that we have the stock readily available to fulfill your needs efficiently.
