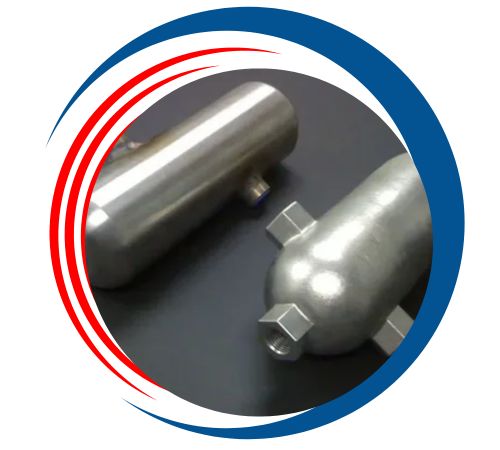

Inconel Condensate Pots

Home > Inconel > Inconel Condensate Pots

Paul Tube Fittings, located in Houston, USA, is a reliable manufacturer and supplier of high-quality Inconel Condensate Pots, designed to withstand extreme pressure and temperature conditions. These condensate pots are crafted from top-notch Inconel alloys like Inconel 600, 625, and 825, which are well-known for their exceptional corrosion resistance and thermal stability. Perfect for steam and fluid measurement systems, Inconel condensate pots guarantee safe condensation collection, protect sensitive instruments from damage, and improve measurement accuracy. With a commitment to precision machining, sturdy construction, and adherence to international quality standards, Paul Tube Fittings delivers products that are ideal for critical process industries around the globe.

Inconel Type A Condensate Pot with Zinc Plating Manufacturer Houston, Inconel Condensate Pot Type B Dealer Los Angeles, Inconel Type C Condensate Pots with 4 Ports Manufacturer Supplier Texas, 600 Inconel Condensate Pots Type A Exporter In California, Inconel Type B Condensate Pot with Galvanized Plating Manufacturer Houston, Inconel Type C Condensate Pot with Red Oxide Coated In Houston, USA.

The Inconel Condensate Pots from Paul Tube Fittings are constructed using nickel-chromium-based alloys such as Inconel 600, 625, and 825, which provide remarkable mechanical strength along with outstanding resistance to oxidation and corrosion. These alloys typically exhibit tensile strengths ranging from 550 MPa to over 850 MPa, maintaining their structural integrity even at high temperatures. With resistance to pitting, crevice corrosion, and chloride-induced stress cracking, Inconel materials guarantee long-lasting performance in challenging environments. The condensate pots are specifically designed for high-pressure steam systems, ensuring dimensional stability, leak-free operation, and a prolonged service life in corrosive and thermally demanding applications.

Inconel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Inconel Condensate Pots Chemical Composition

Grade	Ni	Cr	Fe	C	Mn	S	Si	Cu
Inconel Condensate Pots	72.0 min	14.0 – 17.0	6.0 – 10.0	0.15 max	1.0 max	0.015 max	0.5 max	0.5 max

Sizing Of Inconel Condensing Pots

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

Top Inconel Condensate Pots Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel Condensate Pots in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

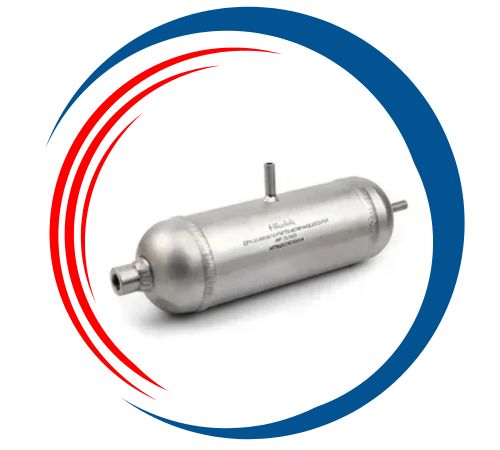

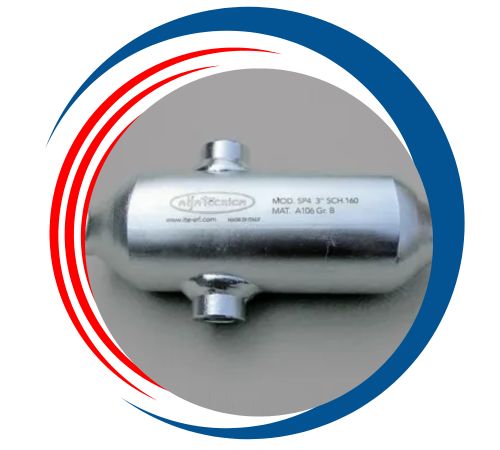

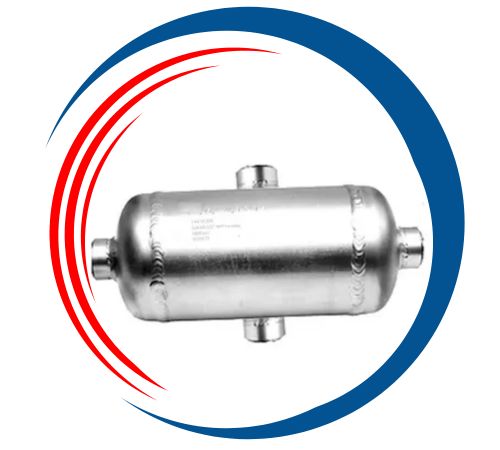

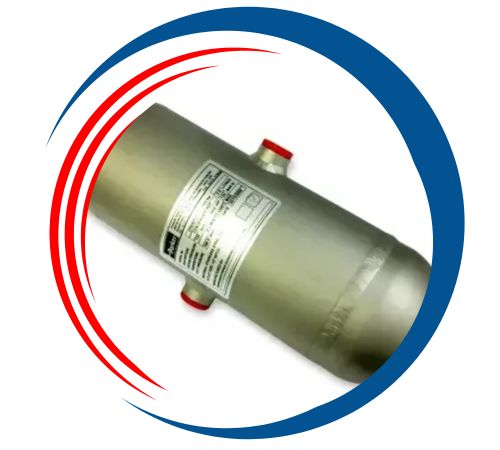

Types of Inconel Condensate Pots

Equivalent Grades of Inconel Condensate Pots

STANDARD	UNS	WERKSTOFF NR.	JIS	AFNOR	BS	GOST	EN
Inconel Condensate Pots	N06600	2.4816	NCF 600	NC15FE11M	NA 13	МНЖМц 28-2,5-1,5	NiCr15Fe

Inconel Condensate Pot Type A Price in Houston, Inconel Type B Condensate Pot with Zinc Plating Manufacturer Supplier in Los Angeles, Alloy 800 Type C Condensate Pots Manufacturer in Texas, Inconel Type A Condensate Pot with Galvanized Plating Price in California, Inconel Type B Condensate Pot with Red Oxide Coated Supplier And Manufacturer in Houston, 601 Inconel Type C Condensate Pot In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Inconel Condensate Pots Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Inconel Condensate Pots in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Inconel Condensate Pots Uses

Inconel Condensate Pots play a vital role in high-pressure steam and fluid measurement systems by collecting and isolating condensate before it reaches sensitive instruments like pressure gauges and transmitters. These pots find extensive use in power plants, refineries, offshore oil rigs, chemical processing, and marine applications, where extreme temperatures, pressure, and corrosive media are prevalent. Paul Tube Fittings’ Inconel Condensate Pots not only protect instruments but also enhance measurement accuracy and system efficiency, making them indispensable in various industrial settings.
