Inconel Thermowell

Home > Inconel > Inconel Thermowell

Paul Tube Fittings stands out as a top-notch manufacturer and supplier of Inconel Thermowells, proudly based in Houston, USA. Known for their precision engineering and unwavering quality assurance, this company focuses on delivering durable, high-performance solutions for temperature measurement in some of the toughest environments. With years of experience under their belt, Paul Tube Fittings provides both custom and standard Inconel Thermowells tailored to meet the demanding needs of industries like petrochemical, aerospace, and power generation. Their dedication to excellence, prompt delivery, and competitive pricing has made them a trusted name in the American market and beyond when it comes to critical process instrumentation components.

Alloy 625 Threaded Thermowells Manufacturer Houston, Inconel Standard Flanges Weld Thermowell Dealer Los Angeles, Inconel Welded Thermowell Supplier Texas, Inconel Heavy-Duty Threaded Thermowell Exporter In California, 600 Inconel Flanges Weld Thermowell Manufacturer Houston, 600 Inconel Socket Weld Thermowell Dealer In Houston, USA.

Inconel Thermowells are primarily made up of nickel (around 58%), chromium (20–23%), and iron (5–10%), along with small amounts of molybdenum, cobalt, and other elements. This unique alloy composition offers outstanding corrosion resistance and high-temperature strength. Inconel boasts a tensile strength of about 1,000 MPa and a yield strength of around 500 MPa, along with excellent fatigue and creep resistance. It can handle working temperatures exceeding 1000°C, making it perfect for harsh conditions. The mechanical strength and chemical stability of Inconel provide reliable protection for temperature sensors in high-pressure and corrosive environments.

Inconel Thermowell Specifications

Standard : DIN, ASTM, BS and all International Standards.
Process Connection Size : 1/2″, 3/4″, 1″, 1 1/2″ and 2″.
Instrument Connection : 1/2 NPSM, 1/2 NPT Female.
Shank Style : Stepped, Straight, Tapered.
U Length : 50, 65, 75, 80, 83, 100, 120, 125, 150, 175, 200, 250, 300.
Bore Size : 6,6 mm (0,260″), 9,8 mm (0,385″), 6 mm to 10 mm.
Flange Facing : Flat Face, Raised Face, Ring Joint.
Rating/Class : 150, 300, 600, 900, 1500 and 2500 class.
Thread Type : NPT, BSP.
Immersion : 2 1/2″.
Surface Finish : 16-32 RA, flange finish 125-250 RMS.

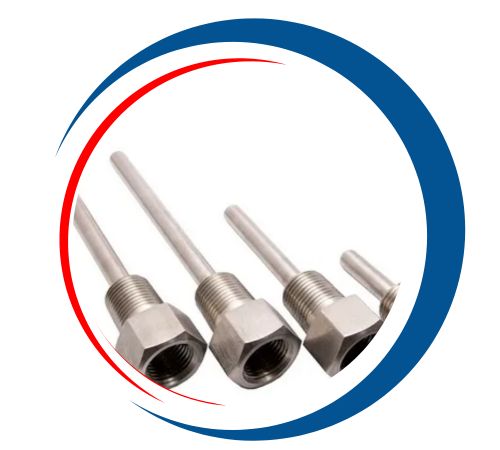

Lagging : 2″ if U-dimension is <3″ 3″ if U-dimension is >3″ Custom Lag dimensions are available.
Cap and Chain : Brass & Stainless Steel.

Top Inconel Thermowell Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel Thermowell in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

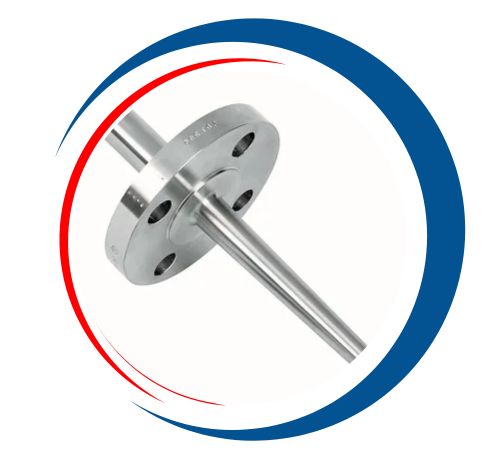

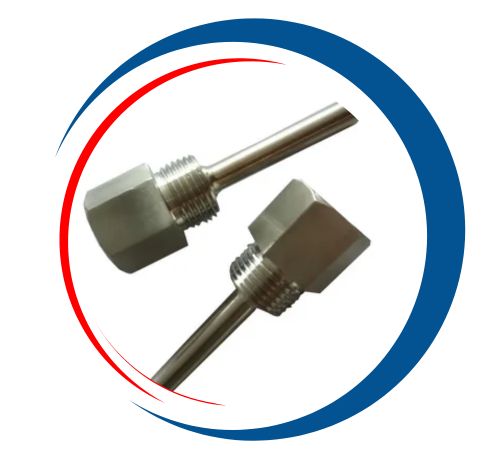

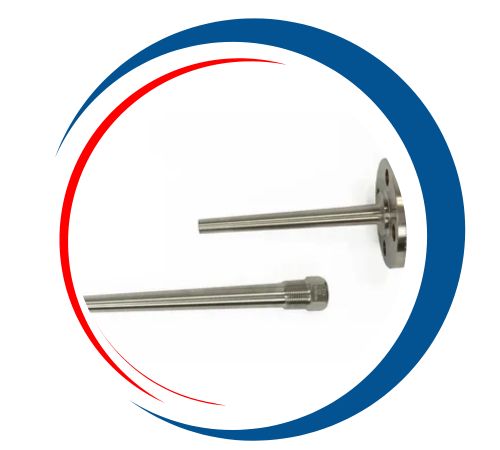

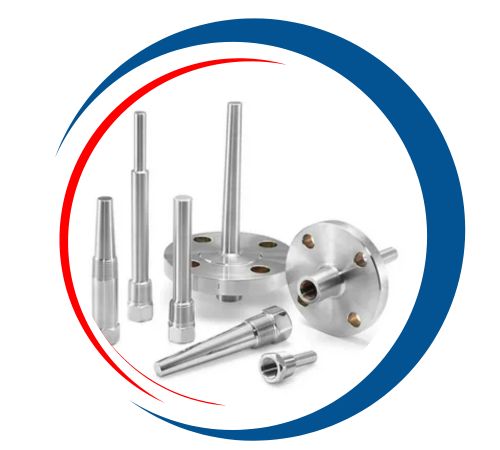

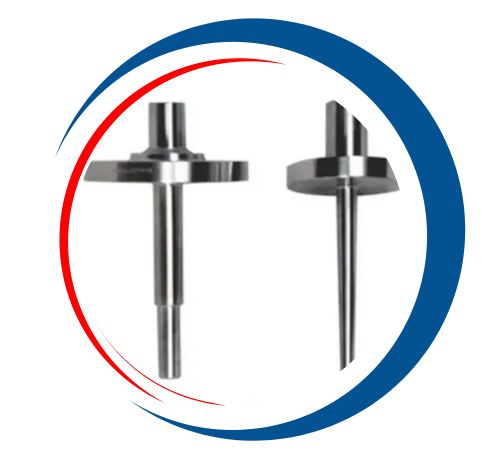

Types of Inconel Thermowell

Inconel Vanstone Thermowell Price in Houston, 600 Inconel Scruton Thermowell Manufacturer Supplier in Los Angeles, Inconel Solid Bar-Stock Sanitary Thermowell Dealer in Texas, Alloy 800HT Lap Joint Flange Facing Van-stone Thermowell Price in California, Inconel Full Penetration Weld Design Scruton Thermowells Supplier In Houston, Inconel Tri-Clover Clamp Sanitary Thermowell Manufacturer in Texas, Incoloy® Alloy Sanitary Thermowell Supplier Supplier In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Inconel Thermowell Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Inconel Thermowell in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Inconel Thermowell Uses

Inconel Thermowells find their place in industries where extreme temperatures, high pressure, and corrosive conditions are the norm. This includes sectors like oil and gas, chemical processing, aerospace, power generation, and marine engineering. They act as protective housings for temperature sensors, keeping them safe from direct contact with process fluids, erosion, and mechanical damage. Inconel’s exceptional resistance to oxidation and scaling makes it a go-to choice for applications in jet engines, reactors, and heat treatment equipment. In power plants, Inconel Thermowells play a crucial role in accurately monitoring boiler and steam line temperatures, enhancing operational efficiency and safety in vital thermal systems.
