Duplex BSP / NPT Fittings

Home > Duplex > Duplex BSP / NPT Fittings

Paul Tube Fittings, based in Houston, USA, is a reliable manufacturer and supplier of top-notch Duplex BSP / NPT Fittings, designed to offer exceptional corrosion resistance and strength in high-pressure fluid systems. Crafted from duplex stainless steel grades like S31803 or S32205, these fittings deliver impressive mechanical performance while standing up to chloride-induced stress corrosion cracking, pitting, and crevice corrosion. Paul Tube Fittings provides a comprehensive selection of British Standard Pipe (BSP) and National Pipe Thread (NPT) configurations, including adapters, elbows, couplings, and tees, ensuring dependable, leak-proof connections for demanding applications in the oil & gas, marine, and chemical processing sectors.

DSS S31803 BSP Threaded Elbow Manufacturer Houston, SAF 2205 BSP / NPT Tee Dealer Los Angeles, Duplex Stainless Steel S32205 Cap NPT Thread Supplier Texas, ASTM A182 DSS 2205 NPT Threaded Pipe Cap Exporter In California, ASTM A182 DSS F60 NPT Cap Manufacturer Houston, Duplex Steel F51 NPT Screwed Tee Houston, USA.

Duplex BSP / NPT Fittings are generally constructed from duplex stainless steel alloys such as UNS S31803 or S32205, which contain about 22% chromium, 5–6% nickel, and 3% molybdenum, along with nitrogen enhancements. This distinctive composition grants them high tensile strength (around 620–880 MPa) and remarkable resistance to corrosion in chloride-rich and aggressive settings. Paul Tube Fittings guarantees precise threading (BSP/NPT) and high-quality surface finishes for a secure seal under pressure. These fittings excel in systems exposed to vibration, thermal stress, and corrosive media, making them perfect for critical and high-demand fluid handling applications.

Duplex BSP / NPT Fittings Specifications

Specifications: ASTM A182/ ASME SA182
Size: 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Dimensions : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Types : Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating: Threaded End-2000lb/ 3000lb/ 6000lbs / Socket-weld End-3000/ 6000/ 9000lbs
Thread: NPT, BSPT, BSPP

Duplex BSP / NPT Fittings Chemical Composition

MATERIAL	C	MN	SI	P	S	CR	MO	NI	N	FE
Duplex BSP / NPT Fittings	.030 Max	2.00 Max	1.00 Max	.030 Max	.020 Max	22.0-23.0	3.00-3.50	4.50-6.50	0.14-0.20	Balance

Duplex BSP / NPT Fittings Mechanical Properties

DENSITY	MELTING POINT	TENSILE STRESS	YIELD STRESS (0.2%OFFSET)	ELONGATION
7.8 g/cm3	1350 °C (2460 °F)	Psi – 116000 , MPa – 800	Psi – 80000 , MPa – 550	15 %

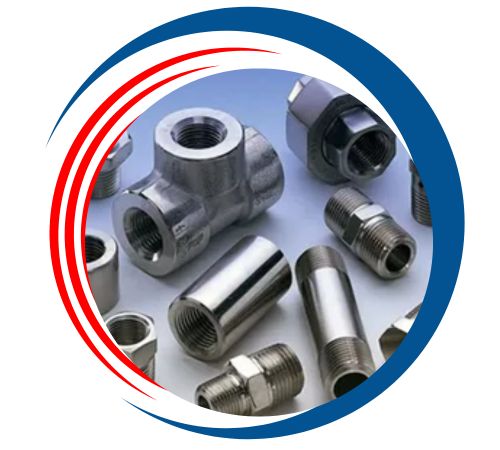

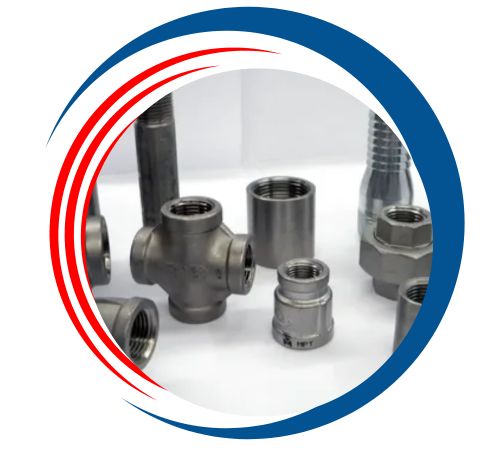

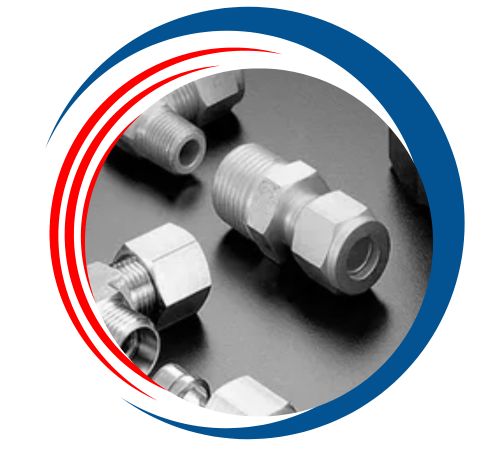

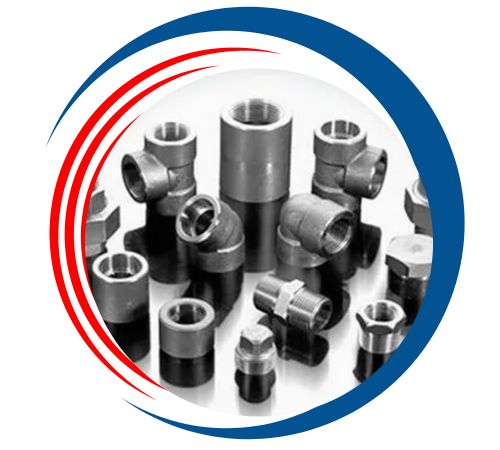

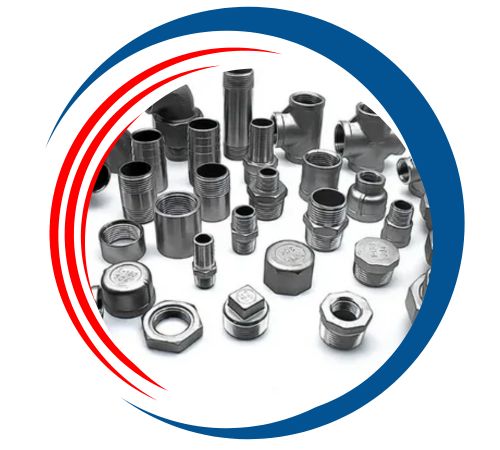

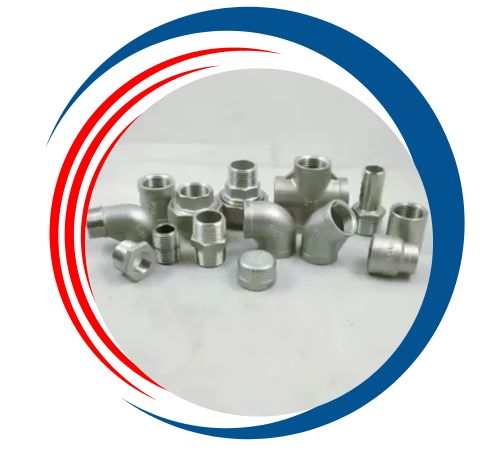

Types of Duplex BSP / NPT Fittings

Equivalent Grades of Duplex BSP / NPT Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy BSP C276	2.4819	N10276	NW 0276	ХН65МВУ	NiMo16Cr15W	ЭП760
Hastelloy NPT C22	2.4602	N06022	NW 6022	–	NiCr21Mo14W	–

S31803 Duplex NPT Threaded Plug Price in Houston, ANSI B16.11 Duplex S31803 NPT x BSP Cross Manufacturer Supplier in Los Angeles, ASTM A182 Duplex Steel S32205 NPT Threaded Cross Manufacturer in Texas, DSS F51 BSP Equal Crosses Manufacturer & Price in California, Duplex Steel F51 BSP Thread Union Supplier And Manufacturer in Houston, F54 DSS MSS SP-83 NPT Thread Union In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Duplex BSP / NPT Fittings in Houston, USA

At Paul Tube Fittings, We are proud to be the largest supplier, manufacturer, and exporter of Duplex BSP / NPT Fittings in Houston, USA. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the USA, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Duplex BSP / NPT Fittings Uses

Duplex BSP / NPT Fittings are perfect for corrosive and high-stress environments where strong, dependable pipe connections are crucial. They’re commonly used in offshore oil rigs, desalination plants, petrochemical refineries, marine systems, and high-pressure chemical lines. Paul Tube Fittings’ duplex BSP/NPT fittings ensure leak-free, vibration-resistant sealing in both static and dynamic fluid systems. Their high corrosion resistance and durability make them a go-to choice for demanding applications, providing peace of mind in critical fluid handling scenarios.
