Hydraulic Equal Tee

Home > Hydraulic Equal Tee

Paul Tube Fittings, based in Houston, USA, stands out as a top manufacturer and supplier of high-quality Hydraulic Equal Tees, designed for reliable branching in high-pressure hydraulic systems. Crafted from sturdy materials like carbon steel, stainless steel, or alloy steel, these equal tees deliver impressive strength, corrosion resistance, and long-lasting durability. They’re built for seamless integration into hydraulic circuits, featuring uniform port sizes that ensure balanced flow and consistent pressure. Committed to meeting strict industry standards, Paul Tube Fittings provides equal tees with precise dimensions and exceptional performance—perfect for tough applications in construction, agriculture, industrial machinery, and fluid power systems.

Hydraulic Equal Tee Supplier in Houston, CS Hydraulic Equal Tee Manufacturer in Los Angeles, USA, DIN 2353 Hydraulic Tee Exporter in California, Hydraulic Equal Tee Assembled & Un Assembled Supplier in Houston, CS Hydraulic Equal Tee Exporter in Texas, DIN 2353 Hydraulic Tee Manufacturer in Los Angeles, USA, Hydraulic Equal Tee Manufacturer in California

The Hydraulic Equal Tees from Paul Tube Fittings are made from premium materials like high-grade carbon steel, stainless steel (SS 304/316), or alloy steel. These materials boast high tensile strength (usually between 450–700 MPa), excellent corrosion resistance, and impressive pressure-handling capabilities. Designed for demanding hydraulic applications, these tees maintain their dimensional accuracy and structural integrity even under thermal and mechanical stress. Their uniform outlet design promotes stable fluid distribution, while their robust construction guarantees a long service life and leak-free performance, even in challenging conditions involving pressure surges, vibrations, or corrosive environments.

Hydraulic Equal Tee Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
MATERIAL
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
CONNECTIONS	WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)
EQUIVALENT BRANDS	PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT

Top Hydraulic Equal Tee Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Equal Tee in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

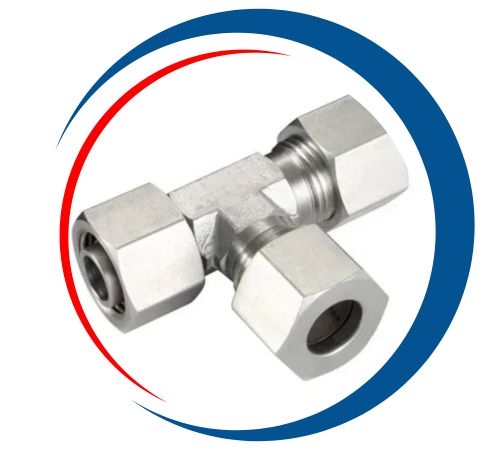

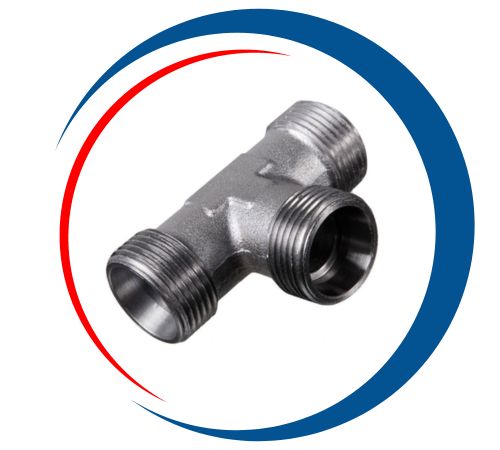

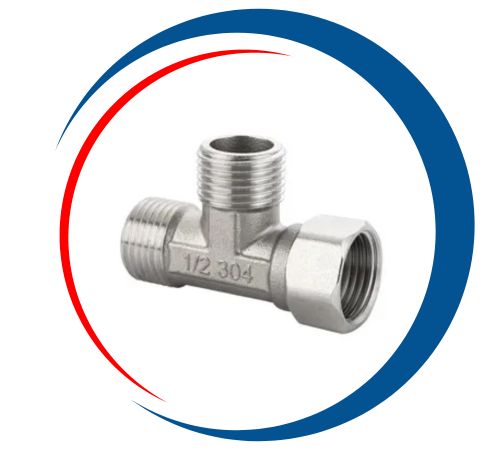

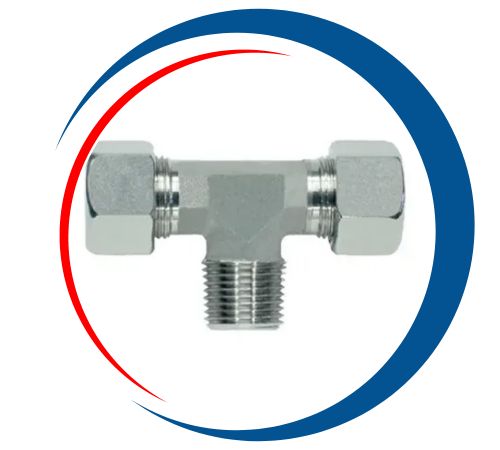

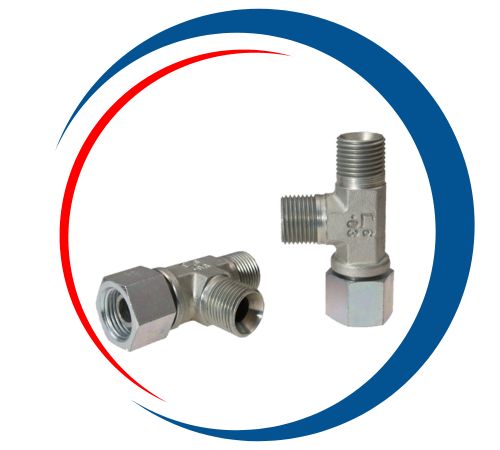

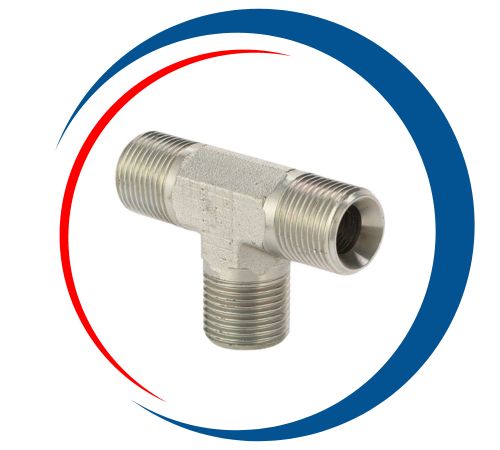

Types of Hydraulic Equal Tee

Dimensions of Hydraulic Equal Tee

Thread	CH	L1	L2	T	Pressure PN	Weight kg 100pcs	Series
Thread F1	mm	mm	mm	mm	bar
12×1,5	12	12	27	6	315	6,3	L
12×1,5	12	12	27	6	315	6,3	L
14×1,5	12	14	29	8	315	8,5	L
14×1,5	12	14	29	8	315	8,5	L
16×1,5	14	15	30	10	315	11,5	L
16×1,5	14	15	30	10	315	11,5	L
18×1,5	17	17	32	12	315	15,0	L
18×1,5	17	17	32	12	315	15,0	L
22×1,5	19	21	36	15	315	24,5	L
22×1,5	19	21	36	15	315	24,5	L
26×1,5	24	23,5	40	18	315	35,8	L
26×1,5	24	23,5	40	18	315	35,8	L
30×2	27	27,5	44	22	160	47,9	L
30×2	27	27,5	44	22	160	47,9	L
36×2	36	30,5	47	28	160	74,5	L
36×2	36	30,5	47	28	160	74,5	L
45×2	41	34,5	56	35	160	100,0	L
45×2	41	34,5	56	35	160	100,0	L
52×2	50	40	63	42	160	150,0	L
52×2	50	40	63	42	160	150,0	L
14×1,5	12	16	31	6	630	11,0	S
14×1,5	12	16	31	6	630	11,0	S
16×1,5	14	17	32	8	630	14,2	S
16×1,5	14	17	32	8	630	14,2	S
18×1,5	17	17,5	34	10	630	19,1	S
18×1,5	17	17,5	34	10	630	19,1	S
20×1,5	17	21,5	38	12	630	24,3	S
20×1,5	17	21,5	38	12	630	24,3	S
22×1,5	19	22	40	14	630	30,2	S
22×1,5	19	22	40	14	630	30,2	S
24×1,5	24	24,5	43	16	400	39,8	S
24×1,5	24	24,5	43	16	400	39,8	S
30×2	27	26,5	48	20	400	60,0	S
30×2	27	26,5	48	20	400	60,0	S
36×2	36	30	54	25	400	112,0	S
36×2	36	30	54	25	400	112,0	S
42×2	41	35,5	62	30	400	146,0	S
42×2	41	35,5	62	30	400	146,0	S
52×2	50	41	72	38	315	206,0	S
52×2	50	41	72	38	315	206,0	S

Hydraulic Equal Tee Assembled & Un Assembled Manufacturer in Los Angeles, SS Hydraulic Equal Tee Exporter in Houston, Hydraulic Reducing Tee Exporter in California, DIN 2353 Hydraulic Tee Supplier in Texas, Hydraulic Equal Tee Assembled & Un Assembled Exporter in Houston, Hydraulic Reducing Tee Supplier in Houston, Hydraulic Equal Tee Stockist in Los Angeles, USA

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Hydraulic Equal Tee in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Hydraulic Equal Tee in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Equal Tee Uses

Hydraulic Equal Tees are crucial components in hydraulic systems that need to evenly distribute fluid through three connecting points. They find extensive use in construction equipment, material handling systems, agricultural machinery, mining rigs, and industrial power units. These tees connect three pipes or tubes of the same diameter, allowing for uniform fluid or air flow between branches without sacrificing pressure or system integrity. Paul Tube Fittings’ Hydraulic Equal Tees are engineered to meet the demands of various applications, ensuring reliable performance and efficiency in every project.
