Paul Tube Fittings stands out as a trusted manufacturer and supplier of top-notch Pressure Gauge Connectors right here in Houston, USA. We provide reliable solutions for precise pressure monitoring in various industrial systems. Our connectors are designed to securely attach pressure gauges to pipes or instrumentation lines, guaranteeing accurate readings and leak-proof connections. Crafted from corrosion-resistant materials and precision-engineered for durability, our gauge connectors are perfect for a wide array of media, including gas, steam, and liquids. Commonly found in oil & gas, chemical, power generation, and HVAC systems, these connectors are built to meet the highest industry standards for safety and performance.

Pressure Gauge Connector Supplier in Houston, Hydraulic Pressure Gauge Connector Price List in Los Angeles, Pressure Gauge Connectors Dn63 Manufacturer in Texas, Reducer In California, SS Pressure gauge connector Exporter in Los Angeles, Pressure Gauge Connector Manufacturer in Houston, Pressure Gauge Connectors Dn63 In Houston, USA.

Pressure Gauge Connectors are usually made from stainless steel (SS 316/304), brass, or carbon steel, providing outstanding corrosion resistance and mechanical strength. With tensile strengths between 70 to 100 ksi, these connectors are designed to withstand pressure fluctuations, vibrations, and aggressive media. The precision threading and sealing surfaces ensure a snug, leak-free fit between the gauge and the process line. At Paul Tube Fittings, we put each connector through rigorous quality checks and pressure testing, ensuring they are mechanically reliable and have a long service life, even under continuous industrial use.

Pressure Gauge Connector Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304, SS 304L, SS 316, SS 316L, SS 316TI ( 1.4571), BRASS, COPPER, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, 904L, 6MO, TITANIUM, ALUMINUM, ALLOY 20
MATERIAL
SERIES	LL- LOW PRESSURE, L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
BODY TYPE	BAR STOCK
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED, YELLOW PLATTING, BLACK PHOSPHATE,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH

Pressure Gauge Connector Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Pressure Gauge Connector in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Pressure Gauge Connector

Pressure Gauge Connectors Dn63

CONNECTORS FOR PRESSURE GAUGE DN63
Thread type	Brass	Max pressure	AISI316	Max pressure
G1/8B	684	630 bar	692	1000 bar
G1/4B G1/4B DIN	675 5635	800 bar 800 bar	688 3828	1250 bar 1250 bar
G3/8B G3/8B w/spigot	680 6379	1000 bar 1000 bar	141	1600 bar
G1/2B	690	1250 bar	693	1600 bar
1/4 BSP T			3399	1250 bar
1/4 flare (7/16-UNF20(SAE)) 3/8 flare (5/8-18 UNF(SAE))	687 6931	800 bar 1000 bar	3219	1250 bar
1/8 NPT 1/4 NPT 1/2 NPT	4047 681	630 bar 800 bar	5158 4050 4051	1000 bar 1250 bar 1600 bar
Throttle screw – Standard damping – Powerfull damping	. 152 2129		. 1427
M10x0,75			1804
M12x1,5 (for Ø6mm tube, compr. gland)			3872
			Carbon steel
Union – M12x1,5 Olive – Ø6 mm			1387 1388
Gaket – PTFE	. 0405-004
Extra gasket G1/4 G3/8 G1/2	Fiber H143 H144 H145	Copper 8760 . 8637

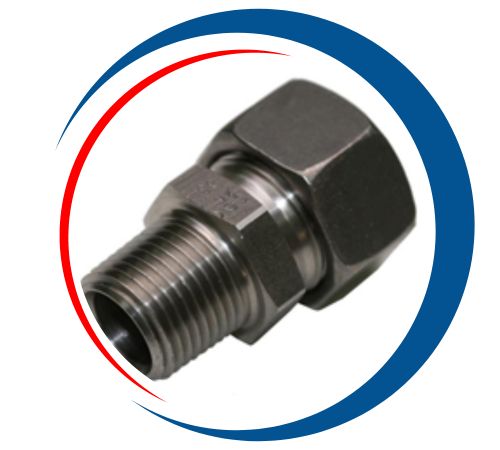

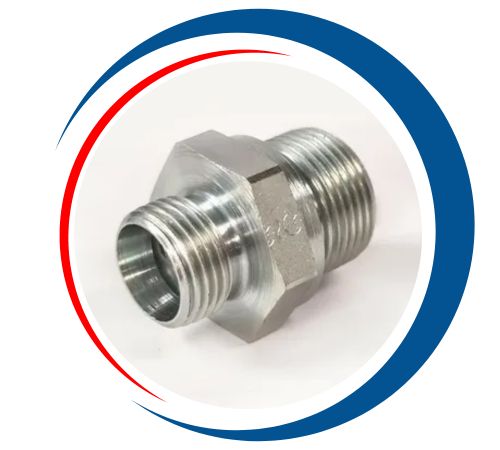

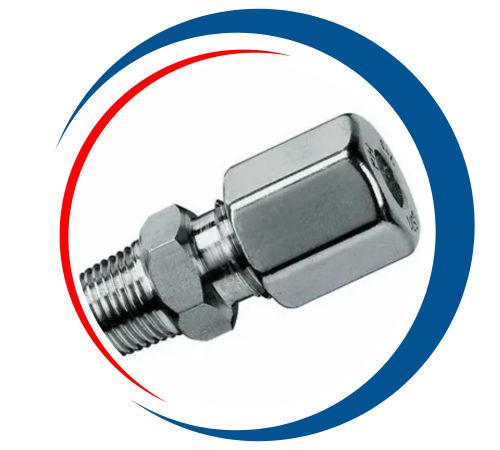

SS Pressure gauge connector Exporter in Houston, Reducer Price List in Los Angeles, Pressure Gauge Connectors Dn63 Manufacturer in Texas, Hydraulic Pressure Gauge Connector In California, Pressure Gauge Connector Supplier in Los Angeles, Reducer Manufacturer in Houston, SS Pressure gauge connector In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Pressure Gauge Connector Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Pressure Gauge Connector in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Pressure Gauge Connector Uses

Pressure Gauge Connectors play a crucial role in securely mounting pressure gauges in systems where accurate and stable pressure monitoring is a must. These connectors are widely utilized in oil & gas, chemical processing, power plants, water treatment systems, and various industrial machinery. Paul Tube Fittings’ connectors facilitate safe and efficient gauge installation, even in high-vibration or corrosive environments. They come in different configurations, such as male/female threads, to suit various applications, ensuring that you have the right fit for your needs.
