Hydraulic Swivel Fittings

Home > Hydraulic Swivel Fittings

Paul Tube Fittings stands out as a top-notch manufacturer and supplier of high-quality hydraulic swivel fittings, proudly based in Houston, USA. With a strong focus on precision engineering and durability, this company crafts swivel fittings that are built to handle the tough demands of hydraulic systems across a variety of industries. These products are designed to deliver outstanding performance, flexibility, and leak-free operation, even in high-pressure and extreme conditions. With years of experience under their belt and a solid reputation for reliability, Paul Tube Fittings caters to customers nationwide, offering top-tier products, exceptional customer service, and custom solutions tailored to meet specific hydraulic needs.

CS Hydraulic Swivel Adapter Supplier in Houston, Hydraulic Swivel Adapter Distributor in Houston, Hydraulic Swivel Connector Manufacturer in Los Angeles, USA, CS Hydraulic Swivel Union Stockist in California, Hydraulic Swivel Adapter Supplier in Texas, Hydraulic Swivel Connector Stockist in Houston, CS Hydraulic Swivel Union Supplier in Los Angeles, Hydraulic Swivel Adapter Exporter in Texas, USA

When it comes to hydraulic swivel fittings, Paul Tube Fittings typically uses high-grade stainless steel, carbon steel, or brass, depending on the intended application. These materials are chosen for their remarkable strength, corrosion resistance, and long-lasting durability. The fittings boast impressive mechanical properties, including high tensile strength (up to 600 MPa), excellent fatigue resistance, and the capability to endure high-pressure environments of up to 6,000 PSI. Thanks to precision machining, these fittings achieve tight tolerances and smooth rotation under pressure, which helps minimize wear and tear on hoses and components while enhancing the overall efficiency of hydraulic systems.

Hydraulic Swivel Fittings Specifications

MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
MATERIAL		WORKING PRESSURE	UPTO 700 BAR
SIZE RANGE	1/8″ TO 2″
BODY TYPE	BAR STOCK
ACCESSORIES	O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE – (-60C TO 240)
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)

Top Hydraulic Swivel Fittings Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Swivel Fittings in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

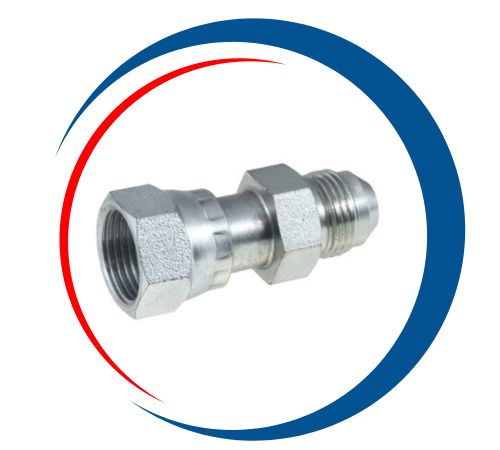

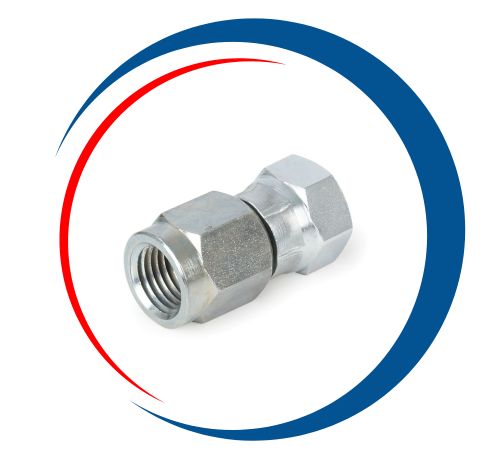

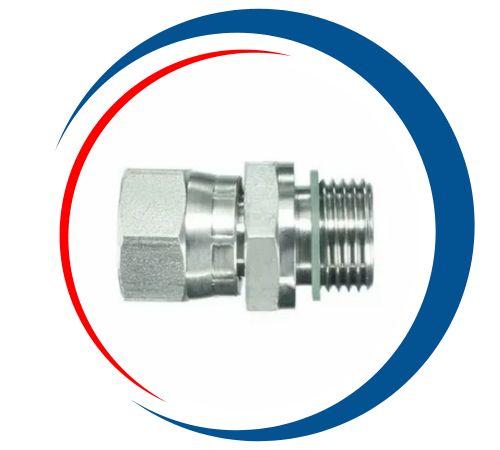

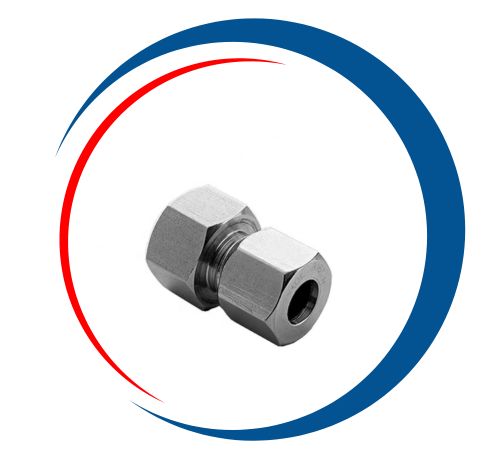

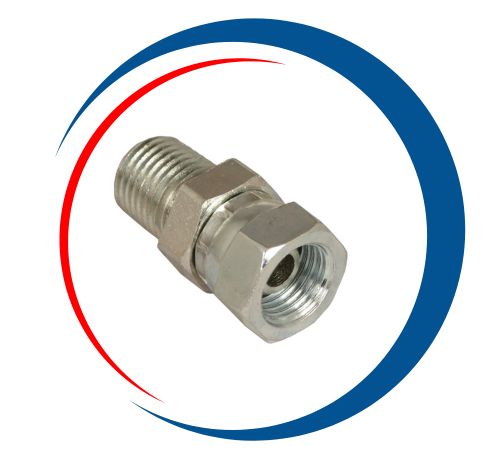

Types of Hydraulic Swivel Fittings

Dimensions of Hydraulic Swivel Fittings

SERIES			TUBE OD.	S1	S2	L2	I2	I5	D1	d1	PART NO.
SERIES			TUBE OD.	S1	S2	L2	I2	I5	D1	d1	PART NO.	METRIC SIZE TUBE	L	250 Kg/cm2	6	12	14	27	12	26	6	M12 X 1.5	SwE6L
8	14	17	29	14	27.5	8	M14 X 1.5	SwE8L
10	17	19	30	15	29	10	M16 X 1.5	SwE10L
12	19	22	32	17	29.5	12	M18 X 1.5	SwE12L
15	22	27	36	21	32.5	15	M22 X 1.5	SwE15L
160 Kg/cm2	18	27	32	40	23.5	35.5	18	M26 X 1.5	SwE18L
160 Kg/cm2	22	30	36	44	27.5	38.5	22	M30 X 2	SwE22L
100 Kg/cm2	28	36	41	47	30.5	41.5	28	M36 X 2	SwE28L
	35	46	50	56	34.5	51	35	M45 X 2	SwE35L
	42	55	60	63	40	56	42	M52 X 2	SwE42L
H	630 Kg/cm2	6	14	17	31	16	27	6	M14 X 1.5	SwE6L
		8	17	19	32	17	27.5	8	M16 X 1.5	SwE8L
		10	19	22	34	17.5	30	10	M18 X 1.5	SwE10L
		12	22	24	38	21.5	31	12	M20 X 1.5	SwE12L
		14	22	27	40	22	34.5	14	M22 X 1.5	SwE14L
	400 Kg/cm2	16	24	30	43	24.5	36.5	16	M24 X 1.5	SwE16L
		20	30	36	48	26.5	44.5	20	M30 X 2	SwE20L
		25	36	46	54	30	50	25	M36 X 2	SwE25L
	250 Kg/cm2	30	44	50	62	35.5	55	30	M42 X 2	SwE30L
	250 Kg/cm2	38	55	60	72	41	63	38	M52 x 2	SwE38L

Hydraulic Swivel Union Supplier in California, SS Hydraulic Swivel Union Exporter in Texas, Hydraulic Swivel Fittings Distributor in Houston, SS Swivel Reducer Adapter Exporter in Houston, CS Hydraulic Swivel Union Manufacturer in Houston, SS Hydraulic Swivel Union Cross Supplier in California, Hydraulic Swivel Adapter Manufacturer in Los Angeles, USA

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Hydraulic Swivel Fittings in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Hydraulic Swivel Fittings in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Swivel Fittings Uses

Hydraulic swivel fittings are essential in dynamic hydraulic systems where hoses and connections experience movement, helping to reduce hose twisting and prolonging hose life. You’ll find these fittings in a range of applications, from construction equipment and agricultural machinery to marine systems, industrial automation, and aerospace hydraulics. They offer 360-degree rotation, allowing for flexible movement of hydraulic lines in tight or high-motion spaces. With Paul Tube Fittings’ hydraulic swivel fittings, you can count on leak-free operation, enhanced safety, and reliable system performance, making them crucial for systems that require continuous rotation or movement under pressure to achieve optimal performance and longevity.
