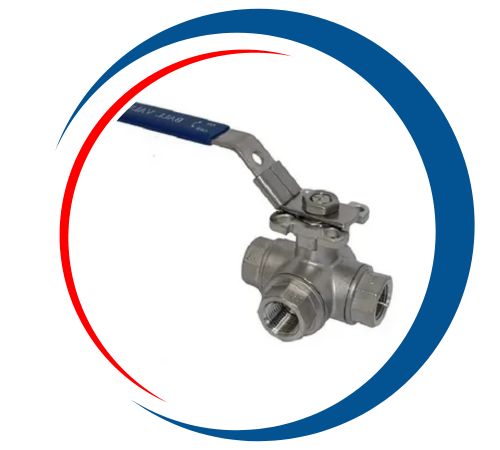

Paul Tube Fittings, located in Houston, USA, is a trusted name when it comes to manufacturing and supplying precision-engineered L Port Type Ball Valves. These valves are specifically designed for managing multi-directional flow in intricate piping systems. Crafted from top-notch materials like stainless steel, carbon steel, and specialized alloys, they boast impressive resistance to corrosion, pressure, and wear. The unique L-shaped flow path allows for seamless two-way flow switching, making them perfect for directing fluids between two outlets. With a focus on leak-tight performance, mechanical durability, and user-friendly operation, Paul Tube Fittings’ L Port Ball Valves are ideal for both industrial and commercial process control applications.
The L Port Type Ball Valves from Paul Tube Fittings are generally constructed from corrosion-resistant materials such as SS304, SS316, carbon steel, and other high-performance alloys. These materials deliver robust mechanical properties, including tensile strength between 450–600 MPa, outstanding fatigue resistance, and stability under varying pressure and temperature conditions. The ball and seats are meticulously machined to guarantee a tight seal and long-lasting functionality. Additionally, the valves come with sturdy handles and seals, ensuring dependable manual control and chemical compatibility across a wide array of industrial and fluid handling systems.

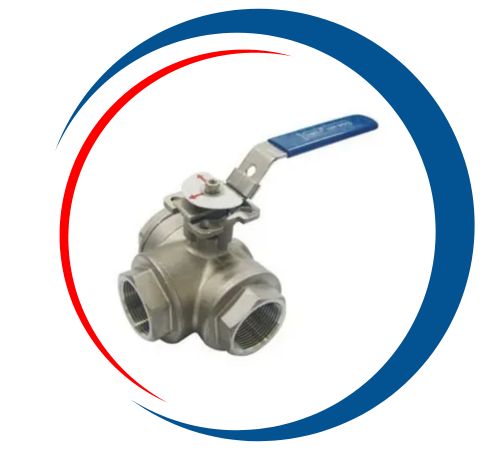

| TYPE : | 3 way L-port Floating Ball Valve |
| Configuration : | L-port, Divertor Type, 2 seat Construction |
| PORT : | Full Bore |
| SIZE : | 15 mm to 200mm NB |
| Pressure Rating : |
ASME#150PN 20
ASME#300PN 50
|
| Temperature Range | 35 Deg C to 280 Deg C (Soft Seated) |
| Body Materials | Stainless Steel / Carbon Steel / Alloys |
| Design Standard | API 6D rev 23; ISO 17292 rev 2004 |
| End Flanges | ASME B16.5 2013 |
| Face to Face Dimension | ASME B16.10 Rev 2009 |
| Fire safe design | API-607 Rev 2010 |
| Testing | API 598 Rev 2009 |
| Sour Service | NACE MOR 0175 Rev 2009 |
| Documents | BS/EN 10204-3.1 REV 2004 |
At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of L Port Type Ball Valve in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands
| SR.NO. | PART NAME | STAINLESS STEEL | CARBON STEEL | QTY |
|---|---|---|---|---|
| 1 | BODY | ASTM A351 CF8M | ASTM A216 WCB | 1 |
| 2 | END CONN. | ASTM A351 CF8M | ASTM A216 WCB | 1 |
| 3 | BALL | ASTM A182 SS316 | ASTM A182 SS316 | 1 |
| 4 | STEM | ASTM A182 SS316 | ASTM A182 SS316 | 1 |
| 5 | SEAT | PTFE | PTFE | 2 |
| 6 | STEM SEAL | GRAPHITE | GRAPHITE | 2 |
| 7 | GLAND | SS316 | MS | 1 |
| 8 | GLAND BEARING | DELRIN | DELRIN | 1 |
| 9 | SPACER | SS316 | SS316 | 1 |
| 10 | STEM THRUST WASHER | GFT | GFT | 1 |
| 11 | BODY SEAL | GRAPHITE | GRAPHITE | 1 |
| 12 | STEM O-RING | VITON | VITON | 1 |
| 13 | END CONN. O-RING | VITON | VITON | 1 |
| 14 | STUD | ASTM A193 GR.B8M | ASTM A193 GR.B7 | 6 |
| 15 | NUT | ASTM A194 GR.8M | ASTM A194 GR.2H | 6 |
| 16 | LEVER | SS410 | SS410 | 1 |
| 17 | STOPER | MS | MS | 1 |
Contact us to get a quick quote for your requirement.
|
Nominal Diameter (mm) |
Nominal Diameter (inch) |
Kv (m3/h) |
Cv (gal/min) |
|
15 |
1/2″ |
19,4 |
22,6 |
|
20 |
3/4″ |
45,6 |
53,0 |
|
25 |
1″ |
71,5 |
83,1 |
|
32 |
1 1/4″ |
105 |
122,1 |
|
40 |
1 1/2″ |
170 |
197,7 |
|
50 |
2″ |
275 |
319,8 |
|
65 |
2 1/2″ |
507 |
589,5 |
|
80 |
3″ |
905 |
1052,3 |
|
100 |
4″ |
1414 |
1644,2 |
|
125 |
5″ |
2362 |
2746,5 |
|
150 |
6″ |
3694 |
4295,3 |
Paul Tube Fittings is a leading supplier and Stockist of premium L Port Type Ball Valve in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
L Port Type Ball Valves find their place in various industries that require precise control over fluid or gas flow between multiple pipelines. They are frequently used in chemical processing, water treatment, pharmaceuticals, HVAC systems, food and beverage production, and industrial automation. Their capability to divert flow between two outlets or isolate one path while allowing flow in another makes them perfect for mixing and distribution systems. Paul Tube Fittings’ L Port Ball Valves guarantee smooth and reliable switching without any leakage, ensuring high operational efficiency and durability even in high-pressure environments.
