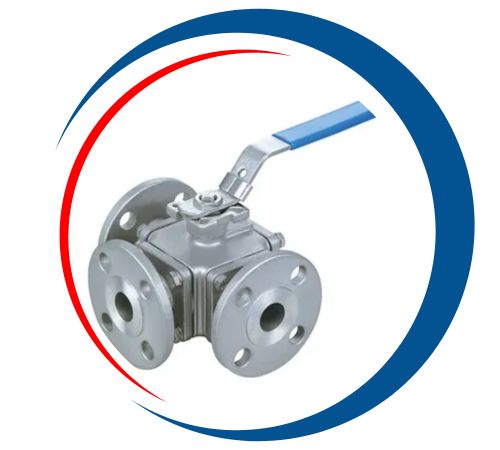

T Port Ball Valve

Home > T Port Ball Valve

Introducing Paul Tube Fittings, your go-to manufacturer and supplier of T-Port Ball Valves right here in Houston, USA! We specialize in providing top-notch flow control solutions tailored for intricate fluid routing systems. Our 3-way valves come with a unique T-shaped port, making them perfect for mixing or diverting flow across three different lines. Crafted from premium stainless steel and corrosion-resistant alloys, our T-Port Ball Valves are celebrated for their leak-tight seals, smooth operation, and impressive longevity. They’re widely trusted in industries like chemical, petrochemical, food processing, and pharmaceuticals, ensuring safe and adaptable flow control even in the toughest conditions.

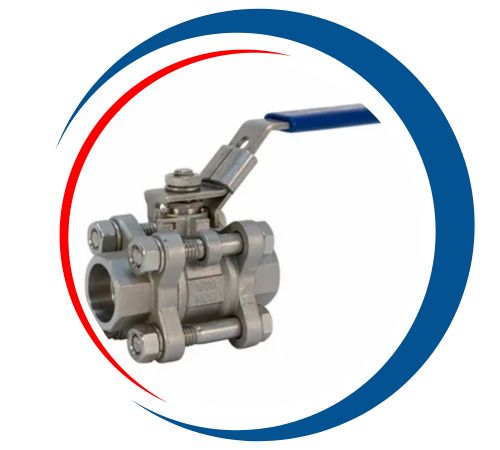

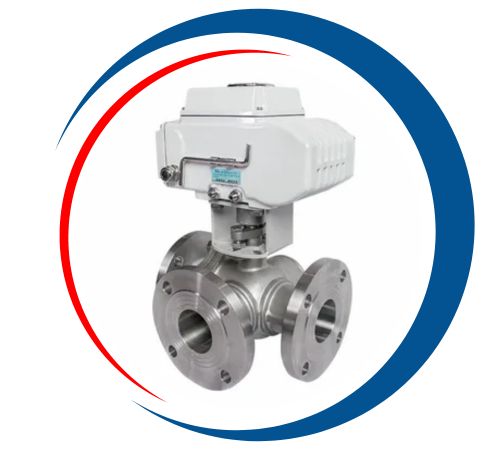

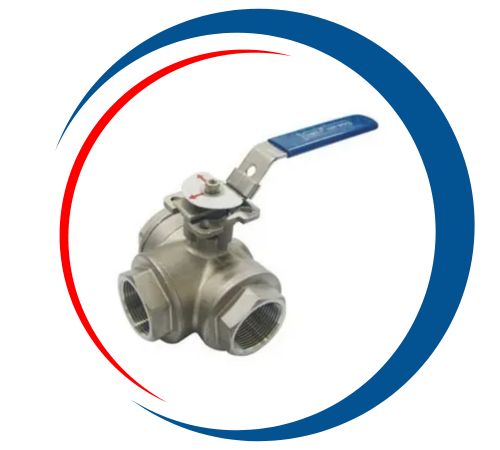

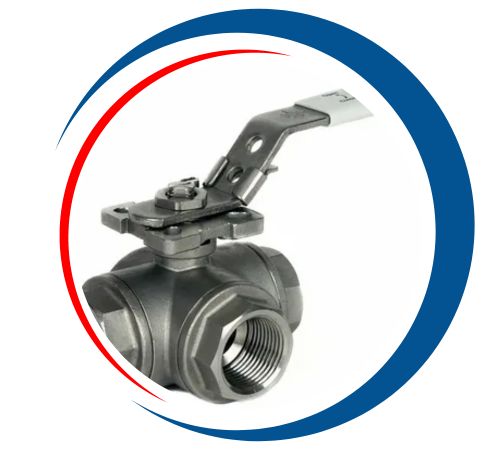

T Port Ball Valve Supplier in Houston, 3 way T-port Floating Ball Valve Price List in Los Angeles, 3 ASME B16.5 2013 Ball Valve Manufacturer in Texas, T Port End Flanged Ball Valve in California, ASTM A479 SS316 Ball Valve Exporter in Los Angeles, ASTM A216 WCB Manufacturer in Houston, ASTM A216 WCB Ball Valve In Houston, USA.

When it comes to the composition and mechanical properties of our T-Port Ball Valves, we use high-quality materials like stainless steel (SS 316/304), carbon steel, and specialty alloys such as Hastelloy and Monel. These materials boast excellent mechanical strength and corrosion resistance, with tensile strengths reaching up to 100 ksi, making them durable enough for high-pressure and high-temperature situations. Our valves are designed with precision-machined balls and seats, along with PTFE or reinforced seals, ensuring a robust body construction for leak-proof performance. At Paul Tube Fittings, we put each valve through rigorous pressure and performance testing, guaranteeing reliable, low-maintenance service in critical flow control systems.

T Port Ball Valve Specification

TYPE :	3 way T-port Floating Ball Valve
PORT :	Full Bore
SIZE :	15 mm to 100mm NB
Pressure Rating :	ASME #150PN 20 ASME #300PN 50
Temperature Range	35 Deg C to 280 Deg C (Soft Seated)
Body Materials	Stainless Steel / Carbon Steel / Alloys
Design Standard	API 6D rev 23; ISO 17292 rev 2004
End Flanges	ASME B16.5 2013
Face to Face Dimension	Non Standard , As per Manufacturer Std
Fire safe design	API-607 Rev 2010
Testing	API 598 Rev 2009
Sour Service	NACE MOR 0175 Rev 2009
Documents	BS/EN 10204-3.1 REV 2004

T Port Ball Valve Supplier in Houston, 3 way T-port Floating Ball Valve Price List in Los Angeles, 3 ASME B16.5 2013 Ball Valve Manufacturer in Texas, T Port End Flanged Ball Valve in California, ASTM A479 SS316 Ball Valve Exporter in Los Angeles, ASTM A216 WCB Manufacturer in Houston, ASTM A216 WCB Ball Valve In Houston, USA.

Top T Port Ball Valve Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of T Port Ball Valve in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands

Material Code for T Port Ball Valve

SR.NO.	PART NAME	STAINLESS STEEL	CARBON STEEL	QTY
1	BODY	ASTM A351 CF8M	ASTM A216 WCB	1
2	END CONN.	ASTM A351 CF8M	ASTM A216 WCB	1
3	END CONN. SIDE	ASTM A351 CF8M	ASTM A216 WCB	1
4	END CONN. BACK	ASTM A351 CF8M	ASTM A216 WCB	1
5	BALL	ASTM A276 SS316	ASTM A276 SS316	1
6	STEM	ASTM A479 SS316	ASTM A479 SS316	1
7	SEAT	PTFE	PTFE	2
8	SEAT SEAL	GRAPHITE / INCONEL	GRAPHITE / INCONEL	2
9	GLAND	SS316	MS	1
8	GLAND BEARING	DELRIN	DELRIN	1
10	SPACER	SS316	SS316	1
12	STEM THRUST WASHER	GFT	GFT	1
13	BODY SEAL	GRAPHITE	GRAPHITE	1
14	STEM O-RING	VITON	VITON	1
15	BODY SEAL	GRAPHITE	GRAPHITE	2
16	END CONN. O-RING	VITON	VITON	2
17	CAVITY	PTFE	PTFE	2
18	STUD	ASTM A193 GR.B8M	ASTM A193 GR.B7	4
19	NUT	ASTM A193 GR.8M	ASTM A193 GR.2H	4
20	STUD	ASTM A193 GR.B8M	ASTM A193 GR.B7	4
21	NUT	ASTM A193 GR.8M	ASTM A193 GR.2H	4
22	STUD	ASTM A193 GR.B8M	ASTM A193 GR.B7	4
23	NUT	ASTM A193 GR.8M	ASTM A193 GR.2H	4
24	LEVER	SS410	SS410	1
25	ALLEN BOLT	MS	MS	1
26	STOPER	MS	MS	1

Types of T Port Ball Valve

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

T Port Ball Valve Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and Stockist of premium T Port Ball Valve in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

T Port Ball Valve Uses

T-Port Ball Valves are essential in systems that need fluid diversion, mixing, or distribution across three ports. You’ll find them in various applications, including chemical mixing plants, pharmaceutical production, food and beverage processing, water treatment, and fuel distribution systems. These valves allow users to manage multiple flow paths with just one valve, simplifying piping layouts. With Paul Tube Fittings’ T-Port Ball Valves, you can enjoy quick and efficient control over your fluid systems!
