Monel 400 Instrumentation Tube Fittings

Home > Monel > Monel 400 Instrumentation Tube Fittings

Paul Tube Fittings is a well-respected manufacturer and supplier of Monel 400 Instrumentation Tube Fittings based in Houston, USA. The company has built a solid reputation for its commitment to quality and precision, offering fittings that are not only durable but also resistant to corrosion, making them reliable in tough environments. These fittings find their place in various industries, including marine, chemical, oil and gas, and other high-performance sectors. With a strong focus on engineering excellence, timely delivery, and compliance with global standards, Paul Tube Fittings has established itself as a go-to partner for clients looking for trustworthy Monel 400 solutions tailored to their specific industrial needs.

Monel 400 Instrumentation Tube Fittings Supplier in Houston, Monel Alloy 400 Double Ferrule Tube Fittings Price List in Los Angeles, UNS N04400 Instrumentation Tube Fittings Manufacturer in Texas, Monel 400 Single Ferrule Fittings In California, Monel 400 Ferrule Fittings Exporter in Los Angeles, Monel 400 Instrumentation Fittings Manufacturer in Houston, Monel 400 Compression Tube Fittings In Houston, USA.

Monel 400 Instrumentation Tube Fittings are primarily made up of 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, carbon, and silicon. This unique alloy offers outstanding corrosion resistance in both seawater and chemical settings. The fittings boast impressive mechanical strength, featuring a typical tensile strength of 550 MPa, yield strength of 240 MPa, and 30% elongation. These properties ensure that Monel 400 can handle pressure and temperature fluctuations effectively, making it an excellent choice for critical applications that demand strength, ductility, and long-lasting durability.

Monel 400 Instrumentation Tube Fittings Specifications

SPECIFICATION	ASTM B366/ ASME SB366, ASTM B564/ ASME SB564, ASTM B865/ ASME SB865
GRADE	Alloy 400/Monel 400/UNS N04400/2.4360
Sizes	1/8’’ to 2’’ and 3mm to 50mm
Ends	Threaded, Welding, JIC
Pressure Rating	1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi
Threads	NPT , BSPT, BSPP

Monel 400 Instrumentation Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min

Monel 400 Instrumentation Tube Fittings Mechanical Properties

Element	Yield Strength (0.2%Offset)	Melting Point	Density	Elongation	Tensile Strength
Monel 400	Psi – 35,000 , MPa – 240	1350 °C (2460 °F)	8.8 g/cm3	40 %	Psi – 80,000 , MPa – 550

Top Monel 400 Instrumentation Tube Fittings Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Monel 400 Instrumentation Tube Fittings in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Monel 400 Instrumentation Tube Fittings

Monel 400 Compression Fittings Size range

	Fitting Types	Size Inch	Size OD
Tube to	Female Fitting	1/4″ to 1 1/2″	6mm to 38mm
	Pipe Fitting
	Union
	Male Fitting
	Tube Fittings Accessories

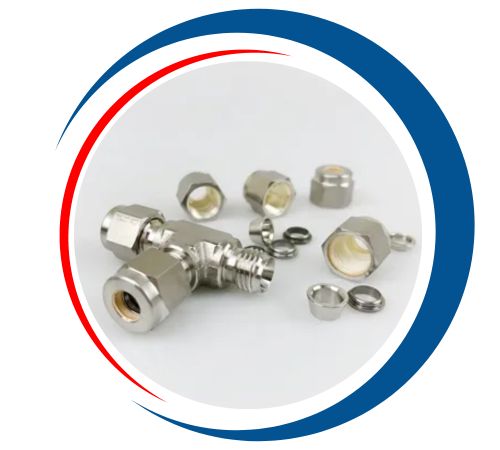

Most Basic Form of Alloy 2.4360 Double Ferrule Fittings

Bulkhead Union	Straight Union	Reducing Union	Union Elbow	Union Cross	Union Tee
Female Connector	Male Connector	Male Bulkhead Connector	Female Bulkhead Connector	Male to Male Elbow	Male Elbow
Male to Female Elbow	Female Elbow	Male Run Tee	Male Branch Tee	Female Branch Tee	Female Run Tee
Female Adaptor	Male Adaptor	Tube End Reducer	OD Plug	Bulkhead Lock Nut	OD Cap

DIN 2.4360 Instrumentation Tube Fittings Price in Houston, Monel 400 Male Branch Tee Supplier in Los Angeles, Monel 400 Bulk Head Female Connector Manufacturer in Texas, Monel 400 Single Ferrule Tube Fittings Price in California, Monel 400 Male Run Tee Supplier And Manufacturer in Houston, Monel 400 Male Elbow In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Monel 400 Instrumentation Tube Fittings Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Monel 400 Instrumentation Tube Fittings in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Monel 400 Instrumentation Tube Fittings Uses

Monel 400 Instrumentation Tube Fittings are utilized in a wide range of applications where corrosion resistance and high strength are crucial. They are particularly well-suited for offshore oil rigs, marine settings, and chemical processing plants. The alloy’s ability to withstand saltwater and harsh chemicals makes it ideal for use in desalination facilities and shipbuilding. In the aerospace and defense industries, these fittings ensure secure, leak-free connections in hydraulic and fuel systems. Moreover, their reliability under high pressure and thermal stress makes them a smart option for heat exchangers, pharmaceutical manufacturing, and nuclear energy applications, where safety and durability are paramount.
