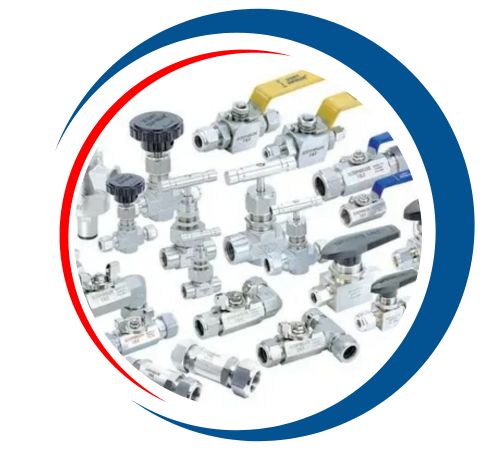

Paul Tube Fittings is a renowned Nickel Alloy Instrumentation Valve manufacturer and supplier in Houston, USA. Well known for our precision-crafted solutions and dedication to excellence, we cater to various industries such as oil & gas, petrochemicals, and power generation. Our Nickel Alloy valves are developed for challenging applications, with exceptional performance in high-pressure and corrosive services. Having years of experience and state-of-the-art manufacturing facilities, Paul Tube Fittings ensures ultimate reliability, timely delivery, and tailored solutions to fit client specifications. We take pride in being a reliable partner for instrumentation control systems throughout the United States and internationally.
Nickel Alloy Instrumentation Valves consist mainly of high-quality nickel and mixed proportions of chromium, molybdenum, iron, and copper, depending on the particular alloy grade like Alloy 400, 600, or 625. The alloys have superior resistance against corrosion, especially in coastal and acidic environments. They have high tensile strength (up to 125 ksi), good elongation (30–45%), and stable operation at high temperatures mechanically. Their hardness is usually between 80 and 95 HRB. All these characteristics make them ideal for high-pressure and high-temperature usage in severe chemical and offshore conditions.
| STANDARD | ASTM A494 / ASME SA494 API 600/BS1414, ASME B 16.10, ASME B 16.34, API 598/BS EN 12266-1, ASME B 16.5, ASME B 16.25 |
| NICKEL VALVE SIZE RANGE | 1/8″ – 2″ (6 TO 50 mm) |
| THREAD | NPT, BSPT, JIC, BSPP, METRIC, UNF |
| CONNECTION | THREADED, BUTT WELD, TUBE END, WELD NIPPLE, SOCKET WELD, FLANGED, SAE |
| FUNCTION | 2 WAY, 3 WAY, 4 WAY, 5 WAY VALVE |
| PRESSURE RATING (PSI) |
|
| SEAL RING MATERIAL | PTFE, PEEK, DELRIN, PVDF, GRAPHITE |
| STANDARD | ISO, ANSI , API , DIN , AWWA , ASME , MSS , |
| MEDIA | HYDRAULIC OIL, SEA WATER , WATER, AIR, STEAM, GAS, COLD WATER , HOT WATER , CHEMICAL |
| MEDIA TEMPERATURE | RANGE AS PER PRESSURE (-120* C TO 500*C ) |
| BODY TYPE | BAR STOCK |
| MANUFACTURER BRAND | OS-LOK |
| PACKING DETAILS | WOODEN PALLET, BOX PACKING, CUSTOM |
| OTHER MANUFACTURERS | SWAGELOK, DK-LOK, PARKER, OLIVER VALVES, HAMLET, HOKE |
| Valve Pressure Rating (CWP) |
|
| Valve Pressure Rating (SWP) |
|
| Valve Pressure Rating (WWP) | 300 PSI / 20.7 Bar |
| End Connections |
|
| Features |
|
| Conforms to |
|
| Custom options available |
|
| Alloy | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min | – |
| 201 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
At Bhavesh Tube Fittings, we are a leading supplier, manufacturer, and exporter of Nickel Alloy Instrumentation Valves in Houston, USA. Our state-of-the-art manufacturing facilities, strategically located in the USA, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.
Paul Tube Fittings is a leading supplier and stockist of premium Nickel Alloy Instrumentation Valves in Houston, USA. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.
Contact us to get a quick quote for your requirement.
Nickel Alloy Instrumentation Valves are extensively used in high-corrosion-resistant and extreme temperature applications in industries. Their main uses are in offshore drilling platforms, chemical plants, nuclear and power plants, marine engineering, and aerospace systems. These valves are critical to flow control in high-pressure instrumentation systems, providing safe and efficient operation of fluids and gases. They are ideal for processing aggressive media like acids, alkalis, and seawater. Their strength and dependability under harsh conditions make them a must in critical applications where performance and safety take top priority.
Please feel free to contact us if you need any further information or for enquiry.
