Stainless Steel 310 Ball Valve

Home > Stainless Steel > Stainless Steel 310 Ball Valve

Paul Tube Fittings, based in Houston, USA, is a well-known manufacturer and supplier of top-notch Stainless Steel 310 Ball Valves. These valves are designed to handle extreme temperatures and high-stress situations, delivering outstanding performance in tough industrial settings. Renowned for their resistance to high-temperature oxidation and impressive durability, SS 310 is perfect for furnace components, heat exchangers, and chemical processing systems. Paul Tube Fittings guarantees that each valve adheres to strict industry standards for quality, precision, and reliability. The company caters to a variety of sectors, including petrochemicals, thermal power plants, and refineries, providing dependable flow control solutions for critical operations.

Stainless Steel 310 Instrumentation Ball Valve Manufacturer in Houston, Stainless Steel DIN 1.4841 Compression Ball Valve in California, SS UNS S31000 Hydraulic Ball Valve Supplier in Los Angeles, X5CrNi18-10 Stainless Steel High Pressure Ball Valve Price List in Houston, 310 Stainless Steel 2 Way Ball Valve Price in California, DIN 1.4841 SS 3 Way Ball Valve in Houston, USA, UNS S31000 Stainless Steel 4 Way Ball Valve Price in Texas, 310 Stainless Steel 5 Way Ball Valve Supplier in Los Angeles

Stainless Steel 310 Ball Valves are made from an iron alloy that includes 24–26% chromium and 19–22% nickel, which gives them remarkable strength and oxidation resistance at high temperatures. This grade maintains its mechanical stability even at temperatures reaching 1100°C (2012°F). The typical tensile strength is around 515 MPa (75,000 psi), while the yield strength is about 205 MPa (30,000 psi). The alloy is known for its good ductility, toughness, and weldability. Its ability to resist sulfidation and scaling in high-temperature environments makes it an excellent choice for industrial valve applications that demand temperature endurance and structural integrity.

Stainless Steel 310 Ball Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Stainless Steel 310 Ball Valve Chemical Composition

SS Grade		Mn	Si	C	N	Cr	S	P	Mo	Ni
310	minimum maximum	– 2.00	– 1.50	– 0.25	–	24.0 26.0	– 0.030	– 0.045	–	19.0 22.0
310S	minimum maximum	– 2.00	– 1.50	– 0.08	–	24.0 26.0	– 0.030	– 0.045	–	19.0 22.0

Stainless Steel 310 Ball Valve Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
Stainless steel 310S Valves	515	205	40	95	217
Stainless Steel 310 Valves	515	205	40	95	217

Stainless Steel 310 Ball Valve Equivalent

STANDARD	UNS	WERKSTOFF NR.	EN	BS	JIS
SS 310	S31000	1.4845	X8CrNi25-21	310S16	SUS 310S

Top Stainless Steel 310 Ball Valve Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel 310 Ball Valve in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Stainless Steel 310 Ball Valve

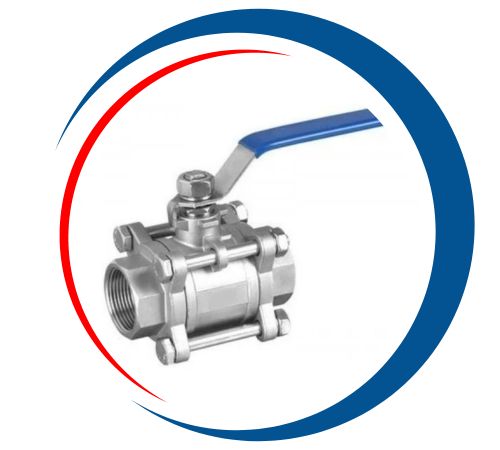

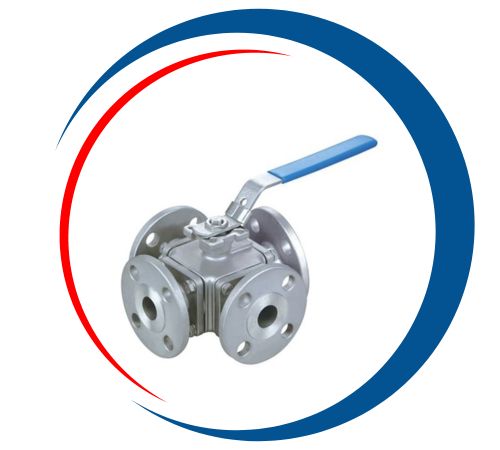

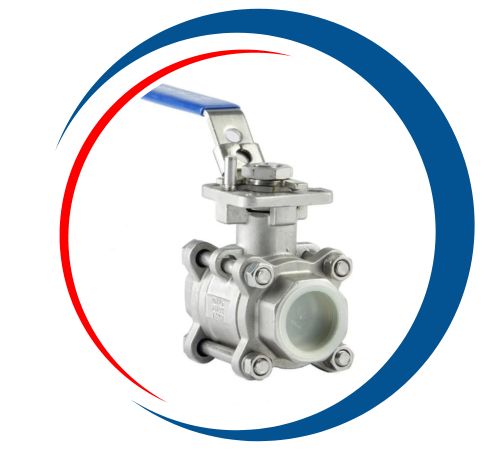

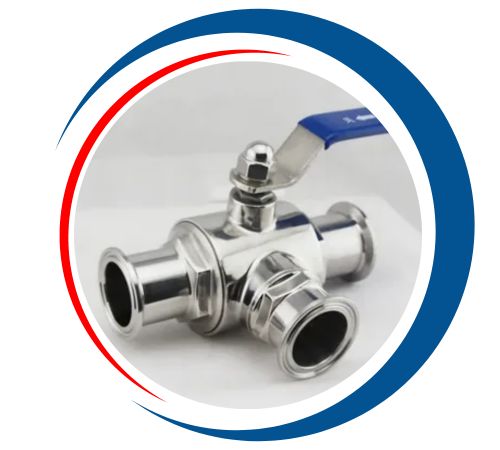

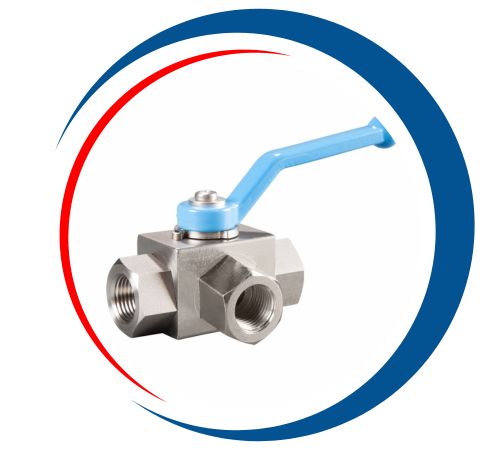

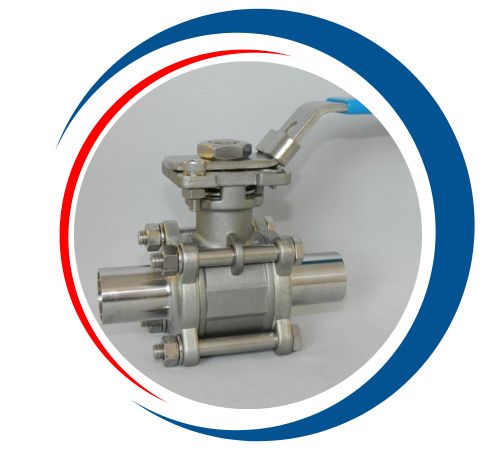

Stainless Steel 310 Instrumentation Ball Valve Price in Texas, UNS S31000 Stainless Steel Compression Ball Valve Supplier in Los Angeles, X5CrNi18-10 Stainless Steel Hydraulic Ball Valve Manufacturer in Houston, DIN 1.4841 Stainless Steel High Pressure Ball Valve in California, 310 Stainless Steel 2 Way Ball Valve Supplier in Los Angeles, UNS S31000 Stainless Steel 3 Way Ball Valve in Houston, USA, DIN 1.4841 Stainless Steel 3 Way Ball Valve Price List in Houston, 310 SS 5 Way Ball Valve Price in California

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Stainless Steel 304 Ball Valve in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Stainless Steel 310 Ball Valve in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel 310 Ball Valves Uses

Stainless Steel 310 Ball Valves find extensive use in industries that operate in extremely high temperatures and corrosive environments. They are commonly applied in furnaces, kilns, thermal oxidizers, petrochemical processing, and power generation plants. These valves are particularly effective in high-temperature steam lines, combustion systems, and heat exchangers. Their capacity to endure oxidation and thermal cycling makes them a reliable choice for industrial applications that require both temperature resilience and structural strength.
