Stainless Steel Condensate Pots

Home > Stainless Steel > Stainless Steel Condensate Pots

Paul Tube Fittings is a renowned Houston-based USA manufacturer and supplier of high-grade stainless steel condensate pots with years of expertise in the market and a commitment to precision and durability. The organization offers efficient solutions for fluid and gas handling systems with a reliable guarantee. These condensate pots are developed through the utilization of top-quality stainless steel, ensuring superior corrosion and aggressive operating condition resistance. Supplying various industries all over North America, Paul Tube Fittings is known for its dedication to quality, prompt delivery, and customer satisfaction in mission-critical piping and instrumentation requirements.

Stainless Steel Type D Condensate Pot with Red Oxide Coated Manufacturer Houston, Stainless Steel Type E Condensate Pot with Zinc Plating Dealer Los Angeles, SS Type F Condensate Pots Supplier Texas, 316 Stainless Steel Type D Condensate Pot Exporter In California, Stainless Steel Type E Condensate Pot with Galvanized Plating Sockets Manufacturer Houston, Stainless Steel Type F Condensate Pots with 6 Ports Supplier Houston, USA.

Stainless steel condensate pots are generally made with SS 304 or SS 316 grades, having components like chromium (18–20%), nickel (8–12%), and traces of manganese and silicon. These alloys provide superior corrosion resistance and mechanical strength with tensile strength of 515–620 MPa and yield strength of 205–310 MPa. They are found to have good ductility with elongation of about 40% and Brinell hardness of around 150–200 HB. They provide these properties such that the condensate pots can sustain high pressure, temperature fluctuation, and corrosive conditions efficiently.

Stainless Steel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Top Stainless Steel Condensate Pots Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel Condensate Pots in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

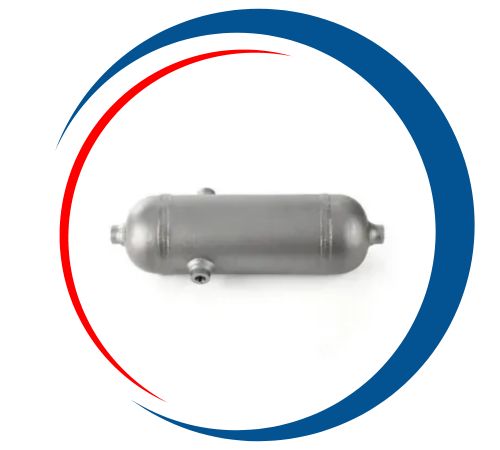

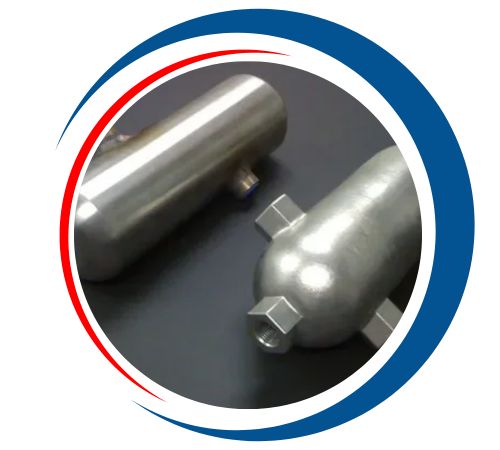

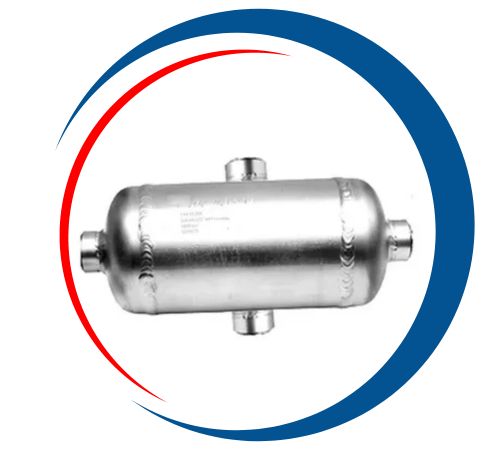

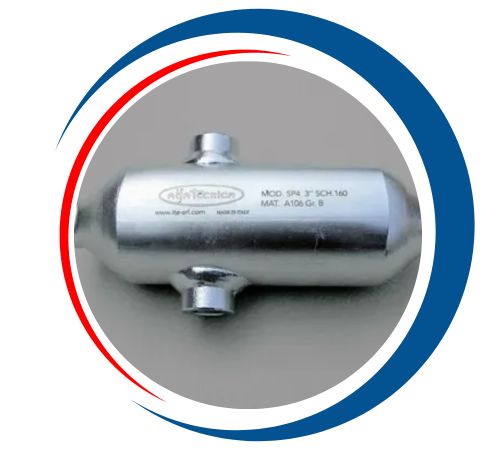

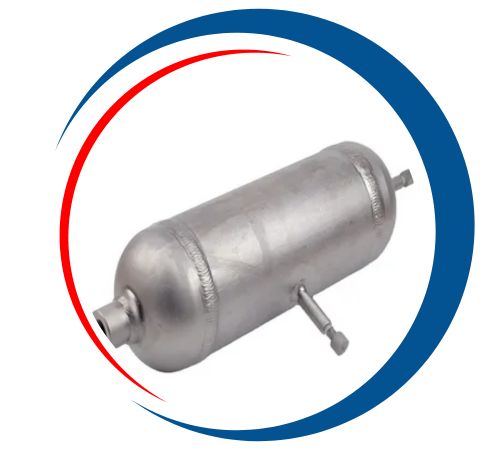

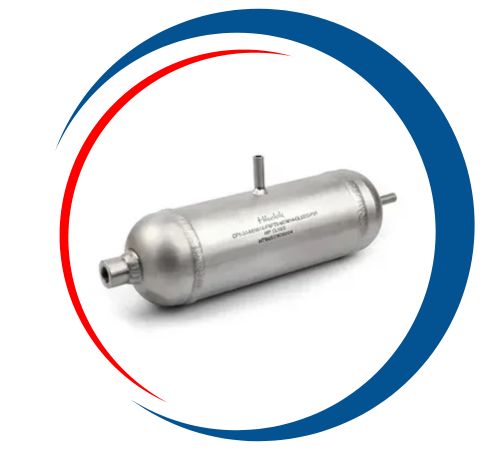

Types of Stainless Steel Condensate Pots

Sizing Of Stainless Steel Condensing Pot

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

SS Type D Condensate Pots Price in Houston, SS Type E Condensate Pots Manufacturer Supplier in Los Angeles, Stainless Steel Type F Condensate Pot with Red Oxide Coated Manufacturer in Texas, Stainless Steel 316 Socket Weld Half Couplings Price in California, Stainless Steel Type D Condensate Pot with Galvanized Plating Supplier And Manufacturer in Houston, Stainless Steel Type E Condensate Pots with 4 Ports Dealer In Texas, Stainless Steel Type F Condensate Pot with Galvanized Plating In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Stainless Steel Condensate Pots Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Stainless Steel Condensate Pots in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel Condensate Pots Uses

Stainless steel condensate pots are employed to capture and separate condensate from steam or gas prior to reaching sensitive instrumentation to ensure accurate measurement and instrument protection. They are utilized in power stations, oil refineries, chemical plants, and offshore facilities where the measurement of precise pressure or flow is essential. Acting as a buffer, the pots avoid interlocking with gauge readings or damaging instruments. Their strong stainless steel construction delivers durability and extended service life, making them well-suited for high-temperature and corrosive industrial piping and control system applications.
