Incoloy 800 Needle Valve

Home > Incoloy >Incoloy 800 Needle Valve

At Paul Tube Fittings, located in Houston, USA, we take pride in being a trusted manufacturer and supplier of top-notch Incoloy 800 Needle Valves. These valves are expertly crafted for precise flow control in high-temperature and corrosive settings. Made from Incoloy 800, a robust nickel-iron-chromium alloy, our needle valves boast remarkable strength and outstanding resistance to oxidation, carburization, and stress corrosion cracking caused by chlorides. Perfect for applications that demand accurate flow regulation under thermal stress, our Incoloy 800 needle valves are ideal for chemical plants, power generation, and furnace operations. With a rugged design, they ensure smooth, leak-free performance and a long service life in even the toughest industrial and process control environments.

Incoloy 800 Needle Valves Supplier in Houston, Incoloy 800 Needle Valve Price List in Los Angeles, Incoloy 800 Needle Valve Manufacturer in Texas, UNS N08800 Needle Valves in California, DIN 1.4859 Bleed Needle Valves Exporter in Los Angeles, Incoloy® Alloy 800 Industrial Needle Valve Manufacturer in Houston, Incoloy 800 Needle Valve In Houston, USA.

When it comes to composition and mechanical properties, our Incoloy 800 Needle Valves are made from a nickel-iron-chromium alloy that contains about 30–35% nickel, 19–23% chromium, and the rest is iron, along with some aluminum and titanium. This unique blend provides the alloy with exceptional resistance to oxidation, carburization, and extended exposure to high temperatures. The material offers impressive tensile strength ranging from 520–690 MPa and maintains its integrity even in extreme thermal cycling conditions. At Paul Tube Fittings, we ensure that our valves are constructed with precision, featuring fine-threaded stems and durable seals for accurate flow control, making them a reliable choice for high-pressure and high-temperature fluid or gas systems.

Incoloy 800 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	INCOLOY 800

Incoloy 800 Needle Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Incoloy 800 Needle Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Top Incoloy 800 Needle Valve Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Incoloy 800 Needle Valve in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

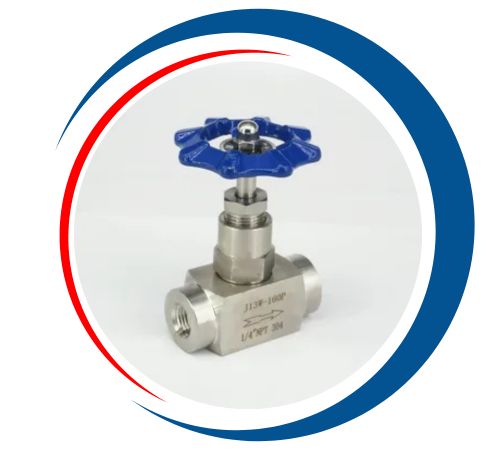

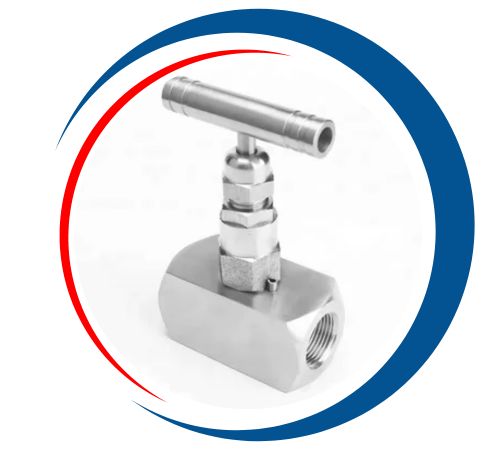

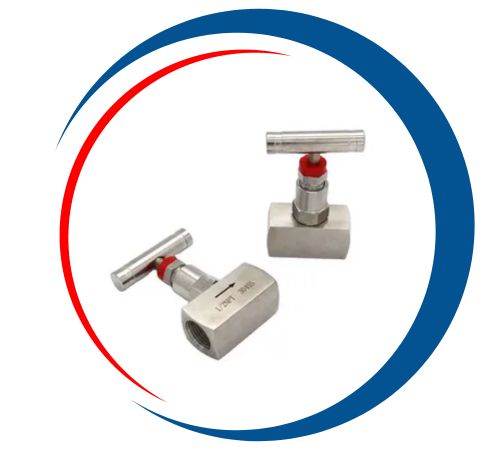

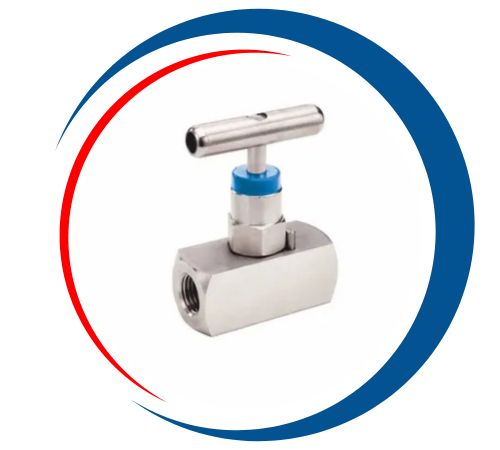

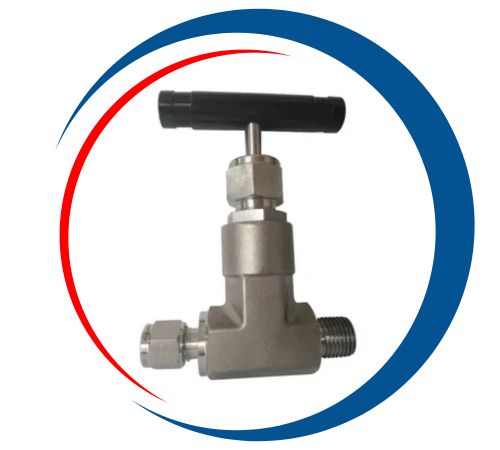

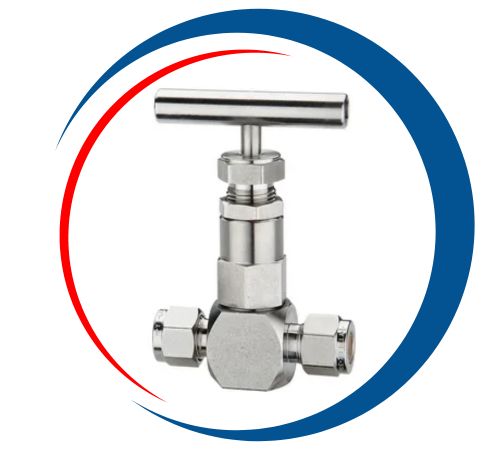

Types of Incoloy 800 Needle Valve

Incoloy 800 Needle Valve Equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T

Incoloy Gauge Vent Valves Manufacturer in Houston, Incoloy 800 Parker Needle Valve Exporter in Los Angeles, Incoloy® 800 Multiport Valves Supplier in Texas, DIN 1.4859 Screwed End Needle Valve Supplier in California, Incoloy UNS N08800 Hydraulic Needle Valve In Texas, Incoloy Alloy 800 Autoclave Needle Valve In California, Incoloy 800 Parker Needle Valve Price List in Houston, Incoloy 800 Needle and Gauge Valves Manufacturer in Houston, Incoloy 800 Needle Valve Exporter in Los Angeles, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Incoloy 800 Needle Valve Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Incoloy 800 Needle Valve in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Incoloy 800 Needle Valve Uses

Incoloy 800 Needle Valves find their place in a variety of high-temperature and corrosive service applications, including heat exchangers, furnace equipment, nuclear power plants, and petrochemical processing units. These valves play a crucial role in controlling flow within instrumentation lines, steam distribution, and high-temperature gas systems. With Paul Tube Fittings’ Incoloy 800 needle valves, you can expect excellent sealing performance and precise regulation in systems that demand reliability and efficiency.
