Inconel 600 Needle Valve

Home > Inconel > Inconel 600 Needle Valve

Paul Tube Fittings is your go-to source for top-notch Inconel 600 Needle Valves right here in Houston, USA. We’ve built a solid reputation for precision engineering and durability, making our valves perfect for high-performance industrial applications. Crafted to ensure reliable flow control even in the toughest environments, these valves stand up to oxidation and corrosion, even at elevated temperatures. At Paul Tube Fittings, we’re dedicated to quality and customer satisfaction, serving a diverse array of industries, from petrochemical to power generation and aerospace. We provide Inconel 600 Needle Valves in a variety of sizes and pressure ratings, tailored to meet the unique needs of your critical fluid and gas control systems.

Inconel 600 Needle Valve Supplier in Houston, High Pressure Inconel 600 Needle Valve Price List in Los Angeles, UNS N06600 Inconel 600 Flow Control Needle Valves Manufacturer in Texas, Inconel 600 Angle Needle Valve in California, 1/4 Inconel 600 Needle Valve Exporter in Los Angeles, Alloy Needle Valve Manufacturer in Houston, Inconel 600 Integral Bonnet Needle Valve In Houston, USA.

Our Inconel 600 Needle Valves are made from a robust nickel-chromium-iron alloy, typically featuring around 72% nickel, 14–17% chromium, and 6–10% iron, along with small amounts of manganese and copper. This blend gives them outstanding resistance to high-temperature oxidation and corrosive substances. On the mechanical side, Inconel 600 boasts impressive tensile strength (up to 655 MPa), good elongation (up to 40%), and remarkable creep resistance. These characteristics make our needle valves perfect for environments where thermal stability, corrosion resistance, and mechanical durability are essential for reliable systems and long-lasting performance.

Inconel 600 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	INCONEL 600

Inconel 600 Needle Valve Chemical Composition

Grade		C	Mn	Si	Fe	S	Cr	Cu	Ni
600	min.	–	–	–	6.0	–	14.0	–	72.0
600	max.	0.15	1.0	0.5	10.0	0.015	17.0	0.5	–

Inconel 600 Needle Valve Mechanical Properties

Grade	Elongation (% in 50mm) min	Strength of Yield 0.2% Proof (MPa) minimum	Strength of Tensile (MPa) minimum	Hardness
				Rockwell B (HR B) maximum	Brinell (HB) maximum
600	40	Psi – 45,000 , MPa – 310	Psi – 95,000 , MPa -655	–	–

Top Inconel 600 Needle Valve Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel 600 Needle Valve in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

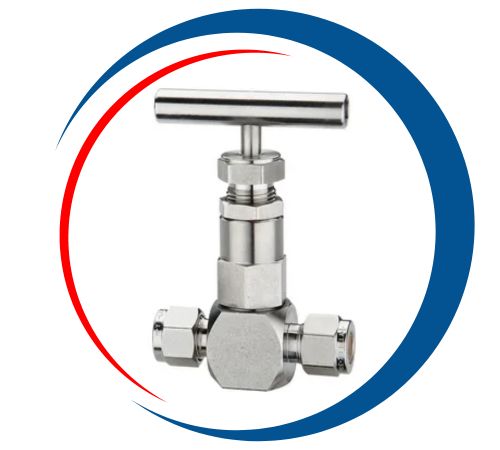

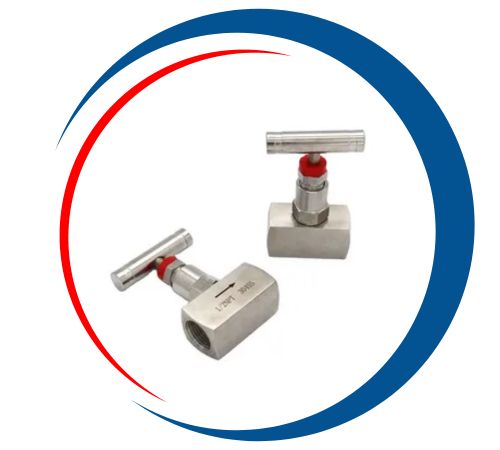

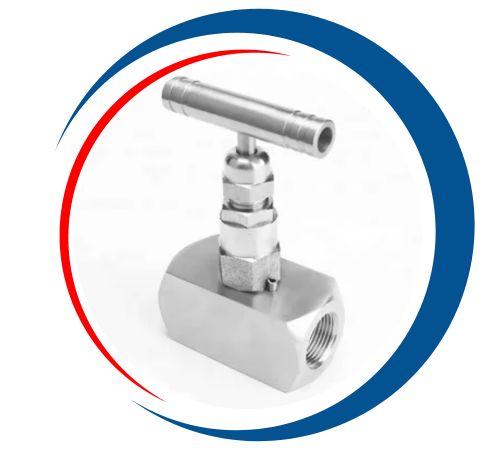

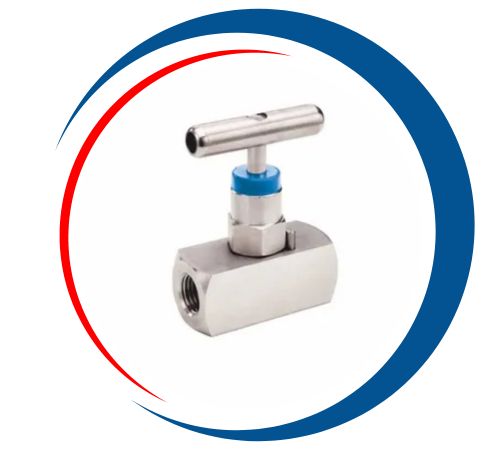

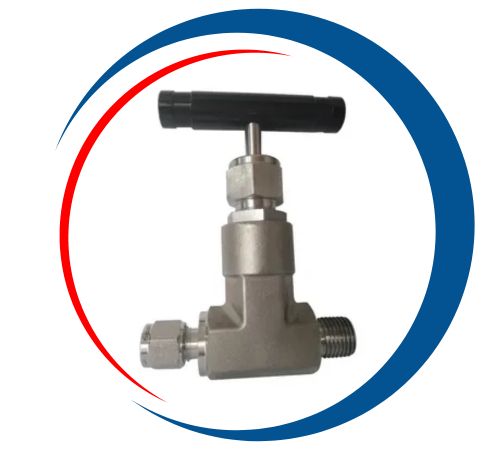

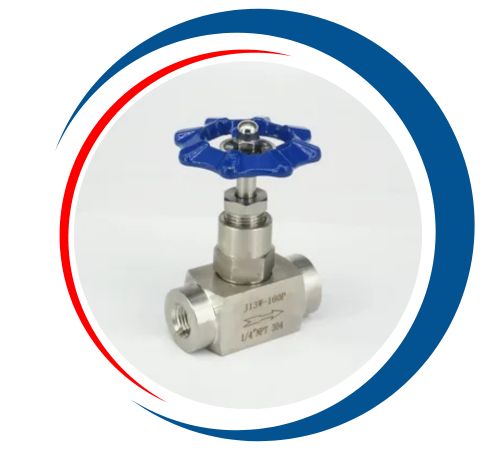

Types of Inconel 600 Needle Valve

Inconel 600 Needle Valve Equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel Alloy 600	2.4816	N06600	NCF 600	NA 13	МНЖМц 28-2,5-1,5	NC15FE11M	NiCr15Fe

NPT Thread Inconel 600 Needle Valve Manufacturer in Houston, Inconel 600 Flow Control Needle Valve Exporter in Los Angeles, DIN 2.4816 Alloy Needle Valve Supplier in Texas, Instrumentation Inconel 600 Needle Valve Supplier in California, Inconel 600 Flow Control Needle Valve In Texas, Inconel 600 Needle Valve In California, Inconel 600 Integral Bonnet Needle Valve Price List in Houston, Alloy Needle Valve Manufacturer in Houston, Inconel 600 Flow Control Needle Valve Exporter in Los Angeles, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Inconel 600 Needle Valve Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Inconel 600 Needle Valve in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Inconel 600 Needle Valve Uses

Inconel 600 Needle Valves are a staple in industries that demand precise flow control under extreme conditions. They play a crucial role in chemical processing plants, where their ability to withstand corrosive acids and high temperatures is key. In the power generation sector, these valves manage steam and gas flow in turbines and heat exchangers. Aerospace applications rely on them for fuel and hydraulic systems, thanks to their reliability and thermal resistance. The oil and gas industry counts on them for offshore drilling and refining operations. Their durability and resistance to stress corrosion cracking also make them a great fit for nuclear power and marine engineering projects.
