Inconel 825 Needle Valve

Home > Inconel > Inconel 825 Needle Valve

Paul Tube Fittings stands out as a top-notch manufacturer and supplier of high-performance Inconel 825 Needle Valves, proudly based in Houston, USA. Known for their precision engineering and outstanding product quality, this company caters to a diverse array of industries, including petrochemical, marine, and power generation. Inconel 825 Needle Valves are crafted to deliver reliable performance even in the harshest environments, boasting exceptional resistance to corrosion, oxidation, and high temperatures. With a strong emphasis on innovation and customer satisfaction, Paul Tube Fittings offers durable, customized solutions that ensure consistent fluid and gas flow control in demanding industrial settings.

Inconel 825 Needle Valve Supplier in Houston, High Pressure Inconel 825 Needle Valve Price List in Los Angeles, UNS N08825 Inconel 825 Flow Control Needle Valves Manufacturer in Texas, Inconel 825 Angle Needle Valve in California, 1/4 Inconel 825 Needle Valve Exporter in Los Angeles, Alloy Needle Valve Manufacturer in Houston, Inconel 825 Integral Bonnet Needle Valve In Houston, USA.

These Inconel 825 Needle Valves are primarily made up of nickel (38–46%), iron (the balance), chromium (19.5–23.5%), molybdenum (2.5–3.5%), copper (1.5–3%), and titanium (0.6–1.2%). This unique blend provides remarkable corrosion resistance, particularly in acidic and marine conditions. On the mechanical side, they showcase a tensile strength of about 586 MPa, a yield strength of around 221 MPa, and an elongation of 30%. These characteristics enable Inconel 825 Needle Valves to maintain their strength and integrity even under high pressure and temperature scenarios.

Inconel 825 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	INCONEL 825

Inconel 825 Needle Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Inconel 825 Needle Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Top Inconel 825 Needle Valve Manufacturing Company in Houston

At Paul Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel 825 Needle Valve in Houston, USA. Our advanced manufacturing facilities, strategically positioned in the USA, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

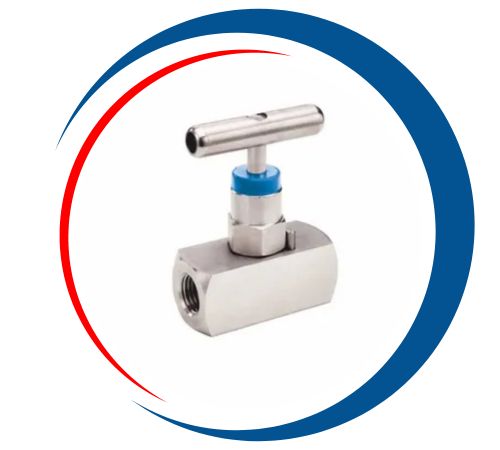

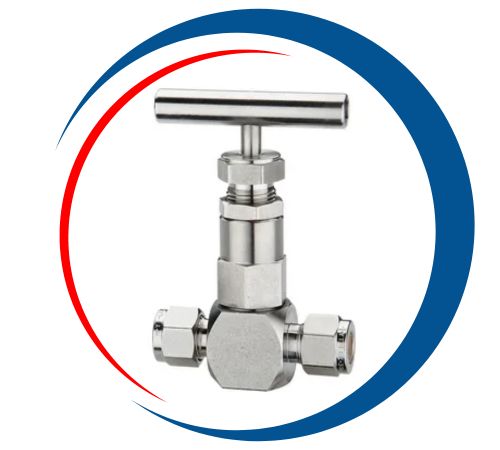

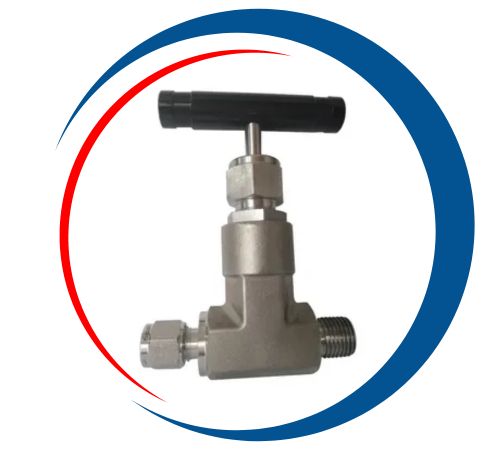

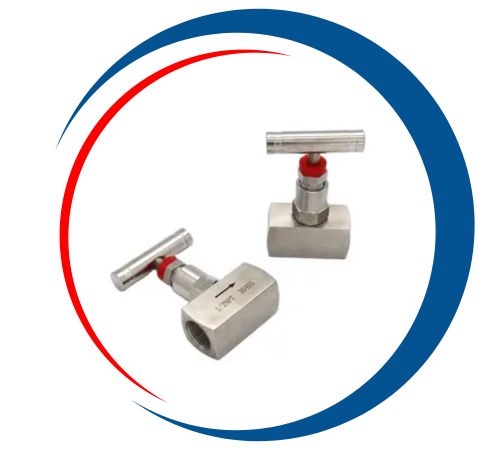

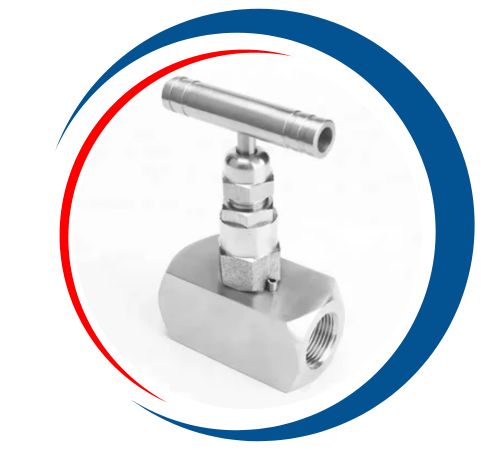

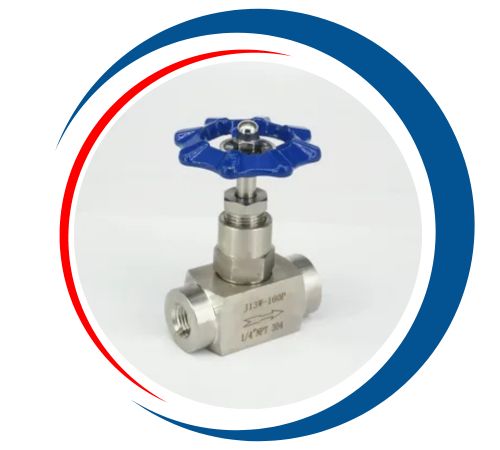

Types of Inconel 825 Needle Valve

Inconel 825 Needle Valve Equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Inconel 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

Inconel 825 Needle Valve Supplier in Houston, DIN 2.4858 High Pressure Inconel 825 Needle Valve Price List in Los Angeles, Inconel 825 Flow Control Needle Valves Manufacturer in Texas, Inconel 825 Angle Needle Valve in California, 1/4 Inconel 825 Needle Valve Exporter in Los Angeles, Alloy Needle Valve Manufacturer in Houston, Inconel 825 Integral Bonnet Needle Valve In Houston, USA.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Inconel 825 Needle Valve Supplier in Houston, USA

Paul Tube Fittings is a leading supplier and stockist of premium Inconel 825 Needle Valve in Houston, USA. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Inconel 825 Needle Valve Uses

Inconel 825 Needle Valves find their place in industries that demand high corrosion resistance and strength in extreme conditions. They are perfect for applications in chemical processing, nuclear fuel handling, marine systems, offshore oil and gas operations, and acid production units. These valves ensure precise fluid flow control in tough environments, including those involving sulfuric and phosphoric acids, seawater, and oxidizing agents. Their reliability in both reducing and oxidizing conditions makes them indispensable for instrumentation, pressure regulation, and heat exchanger systems. Inconel 825 Needle Valves are the go-to choice for critical applications where performance and durability are absolutely essential.
